Perrot VP3 ATC Piston-Drive Pop-up Sprinkler

PRE-ORDER / SPECIAL ORDER. This range is not held in stock. Dispatch timing is confirmed individually.

The Perrot VP3 ATC is a piston-drive pop-up sprinkler for large-area sports irrigation, including synthetic turf, hockey pitches and racetracks.

This configuration

• Standard version without an integral valve.
• ATC artificial-turf cap configuration.
• Select the 16 mm, 20 mm or 24 mm nozzle.

Technical information

• Inlet: 2 inch BSP female, with a brass inlet bushing.
• Recommended operating pressure: 4–8 bar at the sprinkler.
• Pop-up height: 120 mm.
• Trajectory: 25°.
• Manufacturer reference throw radius across the VP3 range: 34–54 m, depending on nozzle and pressure.
• Adjustable rotation speed: approximately 50–120 seconds per 180°.

The reference range is not a guaranteed radius for every nozzle or valve configuration. Use the manufacturer’s performance table and account for system pressure losses when designing the installation.

Service and installation

The enclosed piston drive is designed for controlled rotation. The manufacturer provides access from above for servicing. The artificial-turf cover must be installed to suit the playing surface.

Manufacturer documents

VP3 data sheet and nozzle performance tables | VP3 operating manual

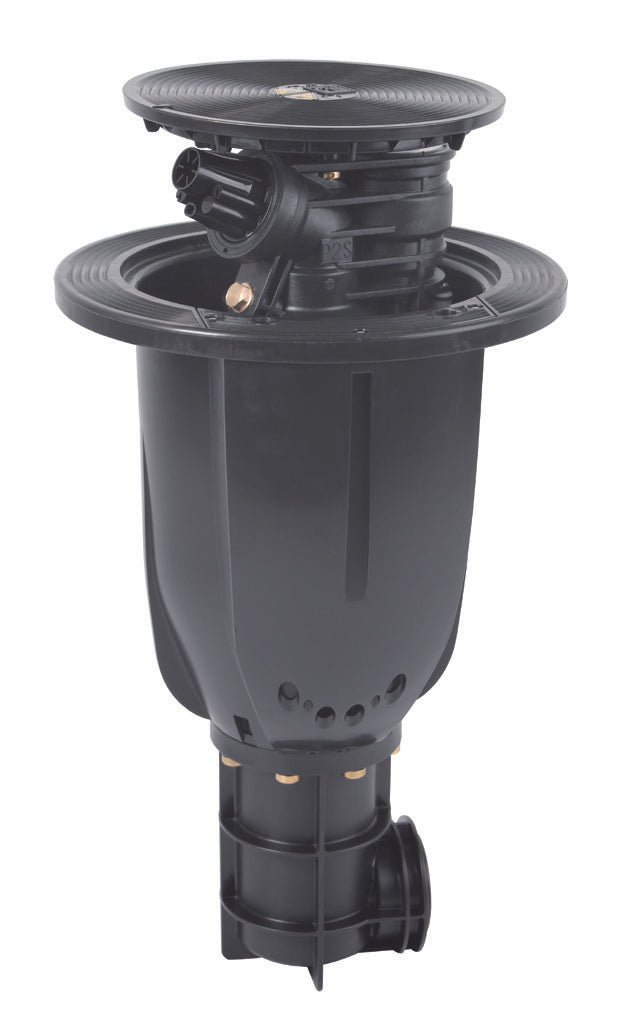

Photographs show the sprinkler body. Cap and internal control details can differ with the selected configuration.

View all Perrot products or ask us about system compatibility.
