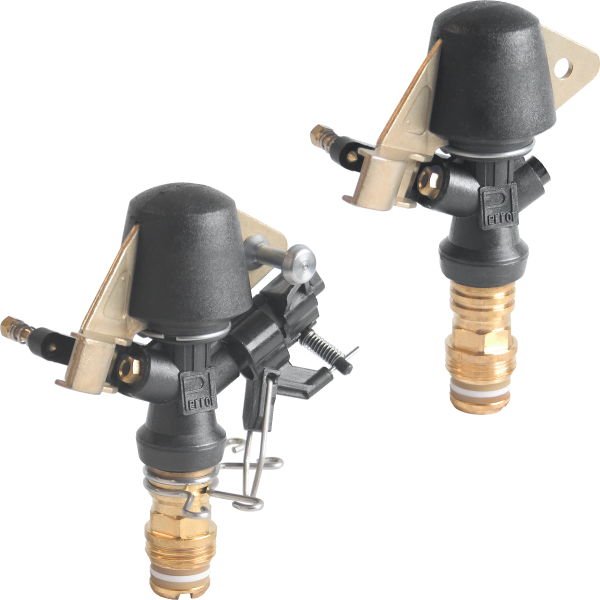

Perrot ZA 22 Impact Sprinkler – ½ inch BSP Male

PRE-ORDER / SPECIAL ORDER. This range is not held in stock. Dispatch timing is confirmed individually.

The Perrot ZA 22 is an impact sprinkler for agricultural and horticultural irrigation. Match the connection, watering pattern and nozzle to the area and available water supply.

Specification

• Connection: ½ inch BSP male.
• Operating pressure at the sprinkler: 2.5–4.5 bar.
• Throw radius: 10.5–14.0 m across the model family.
• Flow: 0.69–1.89 m³/h across the model family.
• Trajectory: 22°.
• Nozzle/configuration: Selected full-circle or part-circle version; check the supplied nozzle size.
• Materials: Brass, stainless steel and engineering plastic.

Family ranges cover different nozzles and pressures; they are not the performance of every option. Radius is the distance from the sprinkler, rather than the full watering diameter. Wind, spacing and available pressure affect the installed result.

Choosing the version

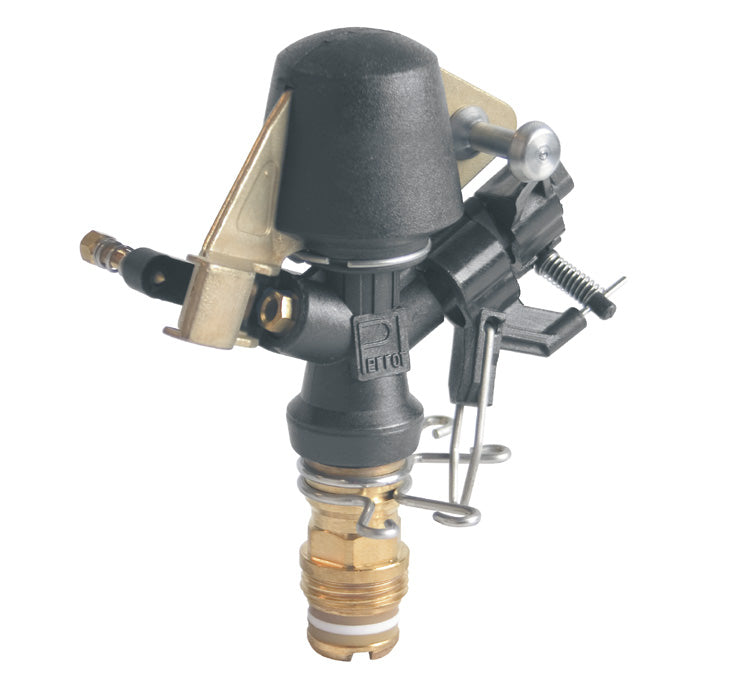

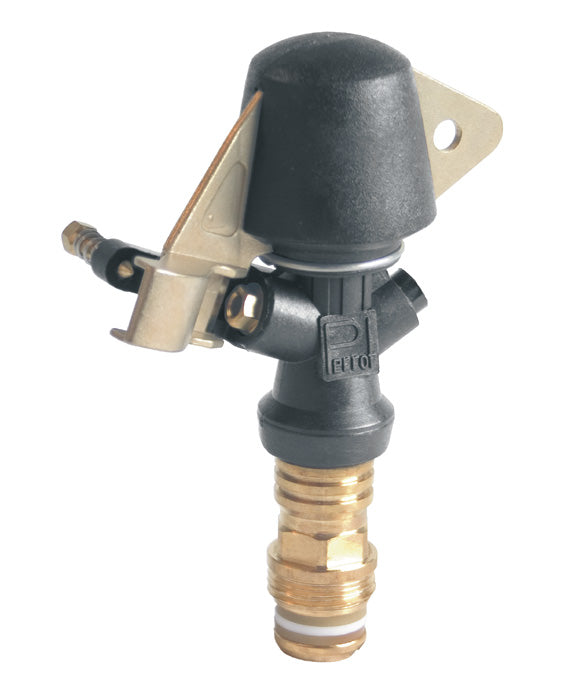

Choose full circle for continuous 360° watering or part circle for an adjustable sector. The ZA 22 W mechanism also permits full-circle operation.

Manufacturer documents

Download the ZA 22 data sheet | Impact sprinkler operating manual

Before ordering

Check pressure and flow while water is running, not just static pressure. The sprinkler head is supplied as the selected option; pipework and mounting equipment are separate unless expressly listed. Manufacturer photographs show the model body and may use a different nozzle.

View the Perrot range or ask us to check your requirements.
