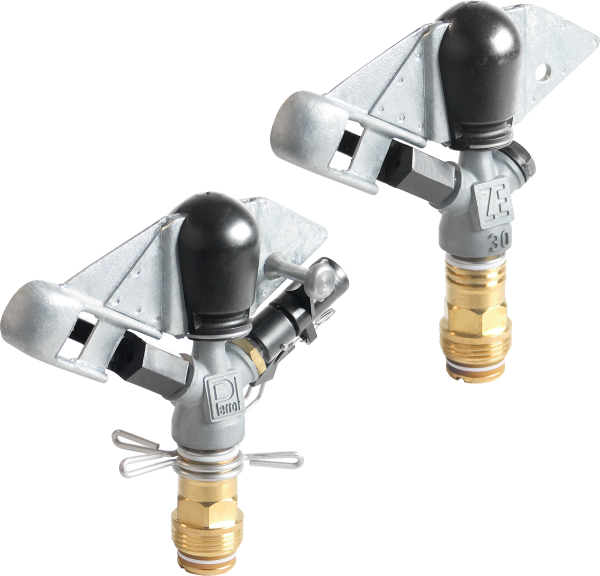

Perrot ZE 30 Part-Circle Impact Sprinkler – 1 inch, 5 mm Nozzle
PRE-ORDER / SPECIAL ORDER. This range is not held in stock. Dispatch timing is confirmed individually.
The Perrot ZE 30 W is an impact sprinkler for agricultural and horticultural irrigation. Match the connection, watering pattern and nozzle to the area and available water supply.
Specification
- Connection: 1 inch BSP male.
- Operating pressure at the sprinkler: 3–7 bar.
- Throw radius: 14.8–17.9 m with the listed 5 mm nozzle.
- Flow: 1.54–2.35 m³/h with the listed 5 mm nozzle.
- Trajectory: 30°.
- Nozzle/configuration: 5 mm.
- Materials: Brass, stainless steel, engineering plastic, cast aluminium and galvanised steel.
Family ranges cover different nozzles and pressures; they are not the performance of every option. Radius is the distance from the sprinkler, rather than the full watering diameter. Wind, spacing and available pressure affect the installed result.
Choosing the version
The listed item is the part-circle version. Check the sprinkler sector and nozzle requirements before ordering.
Manufacturer documents
Download the ZE 30 W data sheet | Impact sprinkler operating manual
Before ordering
Check pressure and flow while water is running, not just static pressure. The sprinkler head is supplied as the selected option; pipework and mounting equipment are separate unless expressly listed. Manufacturer photographs show the model body and may use a different nozzle.
