Save 35%
Plasson 90° Threaded Tee
Regular price
Sale price
£3.76
Regular price
£5.79
Shipping calculated at checkout.

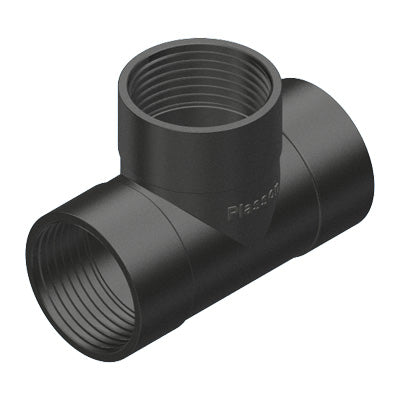

A 90-degree female threaded tee from PLASSON’s Line 5 polypropylene fitting range. It creates a right-angle branch between three compatible male pipe threads in water installations.
Key specifications
- PLASSON family: 050407
- Material: high-grade polypropylene copolymer
- Three equal female connections
- Female thread designation: Rp
- Thread standard: ISO 7-1
- Standards: ISO 17885 for water applications and AS/NZS 4129
- Pressure rating: PN16 from ½ in to 1 in; PN10 from 1¼ in to 2 in
Size selection
Choose the common nominal thread size required at all three ports. Check the male thread standard and system pressure before ordering; the pressure class changes above 1 in.
Installation
Isolate and depressurise the system. Support the adjoining pipework, start each thread by hand, use a suitable thread seal where required and avoid overtightening. Pressure-test before service.
Pre-order — normally dispatched within 3–5 working days.
