Save 35%

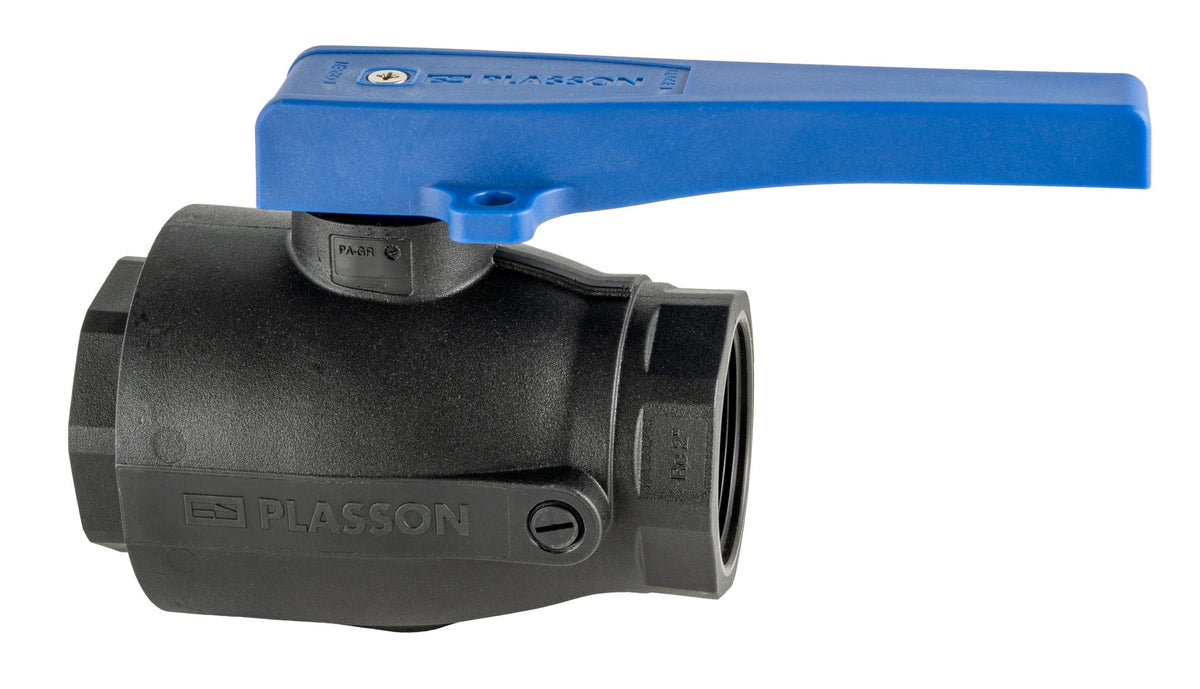

Plasson Ball Valve with Female Threads

Pre-order — Normally dispatched within 3–5 working days

SKU: PV0370300007

£46.90 ~~£72.16~~

Shipping calculated at checkout.

The PLASSON ball valve with female Rc threads provides quarter-turn isolation for water pipework. Its glass-reinforced polyamide body offers a corrosion-resistant alternative to metal valves, with sizes from ¾ in to 2 in.

Key specifications

Connections: female Rc threads at both ends
Sizes: ¾ in, 1 in, 1¼ in, 1½ in and 2 in
Pressure rating: PN16 water
Thread standard: ISO 7-1
Body: glass-reinforced polyamide
Seal: EPDM
Water-application standard: ISO 17885; also listed to AS/NZS 4129

Installation

Isolate and depressurise the system. Keep the valve body supported while making threaded joints, use a sealing method suitable for ISO 7-1 threads and the service, and avoid imposing pipe strain on the valve.

Confirm chemical, temperature and pressure compatibility before use. Do not exceed PN16, overtighten the connections or operate a damaged valve. Pressure-test the completed installation before service.

Pre-order — normally dispatched within 3–5 working days.

Size: ¾ in

¾ in 1 in 1¼ in 1½ in 2 in
