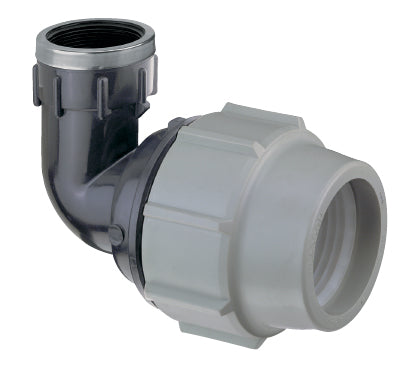

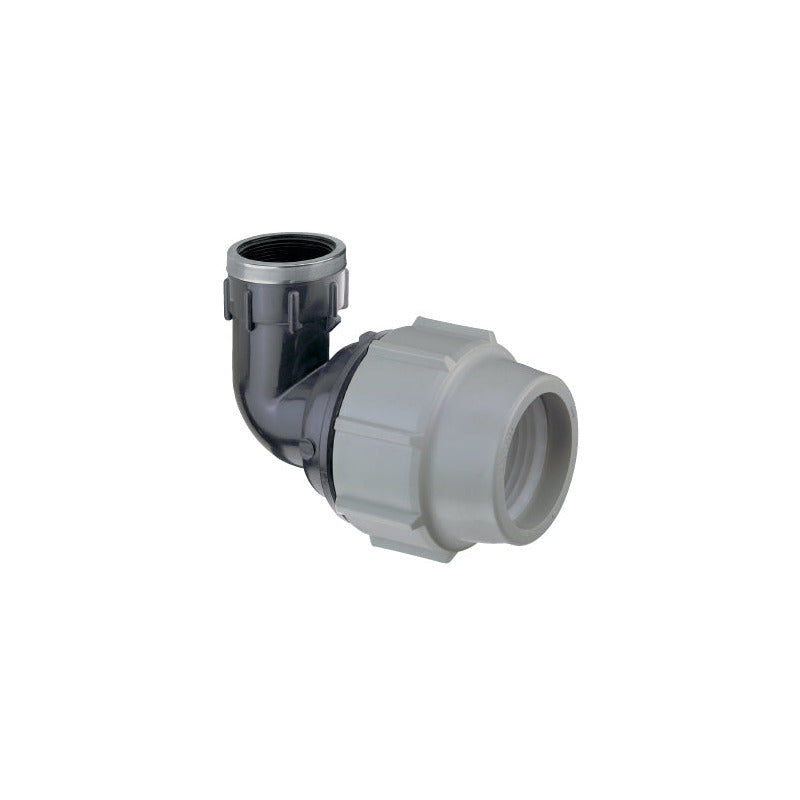

Plasson 90° Elbow with Threaded Female Offtake

The Plasson 90° Elbow with Threaded Female Offtake connects polyethylene (PE) water pipe to a female threaded component at a right angle. It is suitable for valves, adaptors and equipment connections in water-distribution and irrigation systems.

• Compression connection for 16 mm to 75 mm PE pipe
• Female threaded offtake options from ½-inch to 2-inch
• Thread manufactured to ISO 7-1
• High-grade polypropylene copolymer body, nut and thread
• Polyacetal split ring with NBR seal
• Manufactured to ISO 17885 for water applications

Select both the PE pipe diameter and female thread size required.

Body material: high-grade polypropylene copolymer.
