Plasson Long Spigot Reducer SDR11 PE100
Plasson long spigot reducers connect different diameters of PE pipe in water and irrigation pipework. Made from black PE100 polyethylene to SDR11, each reducer has two plain spigot ends and is supplied individually.
Choose your reducer size
| Pipe sizes | Manufacturer code | Overall length | Maximum diameter | Product weight |
|---|---|---|---|---|
| 90 mm x 63 mm | PS2323131115 | 178 mm | 90 mm | 0.30 kg |
| 63 mm x 50 mm | PS2323111015 | 148 mm | 63 mm | 0.14 kg |
Material and connection details
- Brand: Plasson; long spigot reducer, PS2323 family.
- Material: PE100 polyethylene; colour: black; SDR: 11.
- Connections: 90 mm and 63 mm plain spigots, or 63 mm and 50 mm plain spigots.
- Selling unit: one reducer. Select the required size above.
Selection and installation
Check the outside diameter and SDR of your PE pipe, the jointing fittings and the installation procedure before ordering. These plain spigot reducers are used in fusion-jointed pipework with compatible equipment and fittings. Follow the applicable pipe and welding procedure for preparation and installation.
Manufacturer information

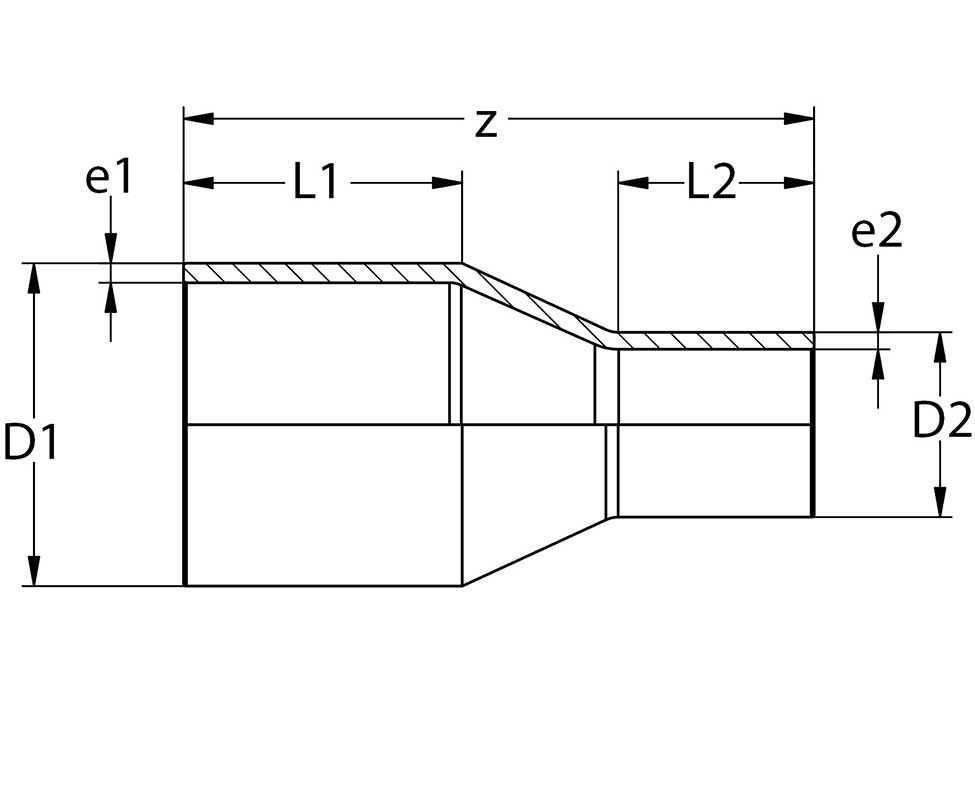

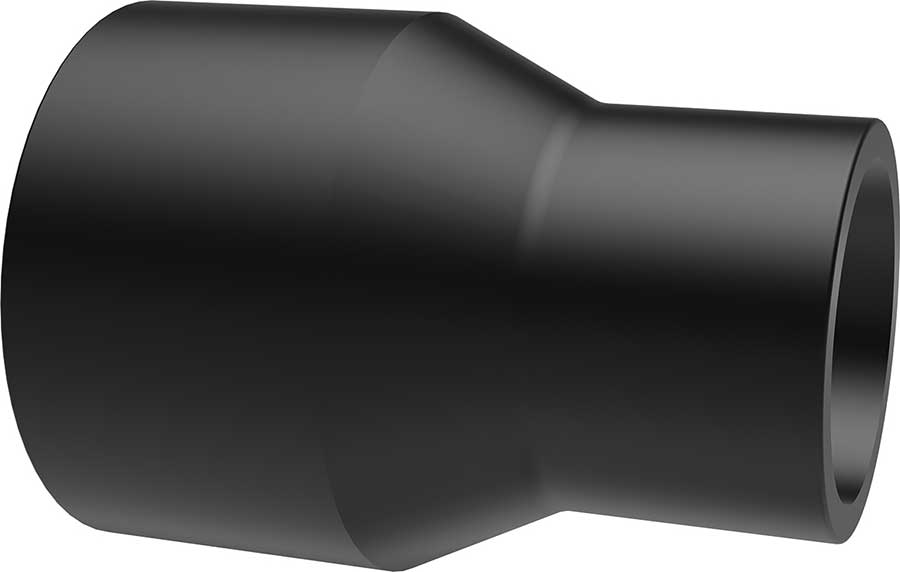

View the Plasson manufacturer datasheet for the PS2323 long spigot reducer family and dimension drawing. The product photograph is a representative family image; the two size options have different dimensions.
