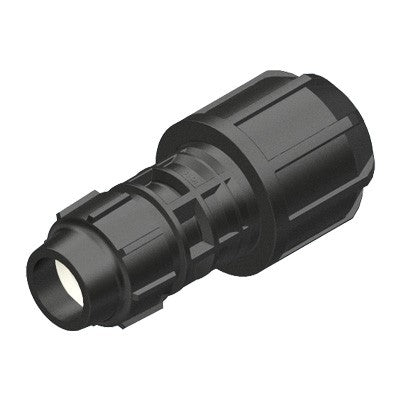

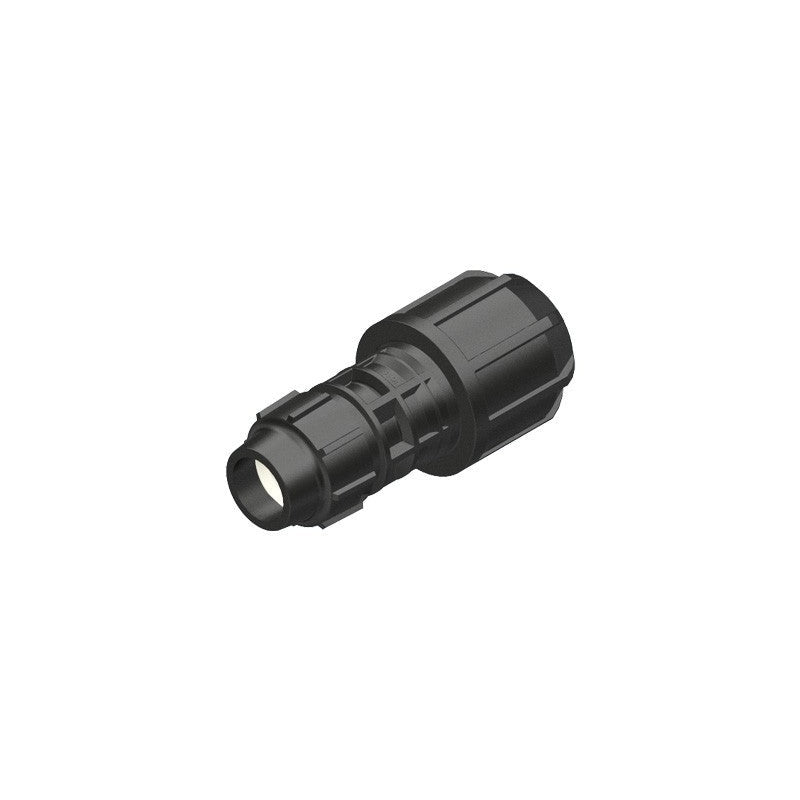

Plass4 Coupling (Universal)

The Plasson Plass4 Universal Coupling connects polyethylene water pipe to an existing pipe within the selected outside-diameter range. It is designed for repairs, renewals and transitions where the existing pipe material or exact nominal size may differ.

• Compression connection options for 25 mm, 32 mm and 50 mm PE pipe
• Universal connection ranges from 15–22 mm to 35–50 mm outside diameter
• 25 mm and 32 mm variants are rated PN16 for water
• 50 mm × 35–50 mm variant is rated PN10 for water
• High-grade polypropylene copolymer body and nut
• Polyacetal and stainless-steel split ring with NBR seal
• Manufactured to ISO 17885 for water applications

Measure the outside diameter of the existing pipe and select the matching pipe size and universal range before ordering.
