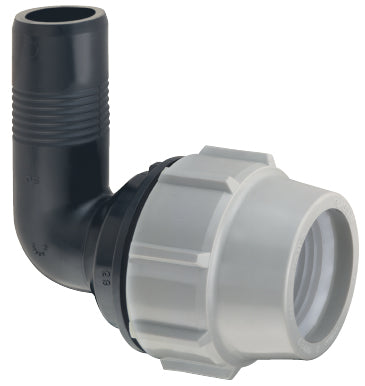

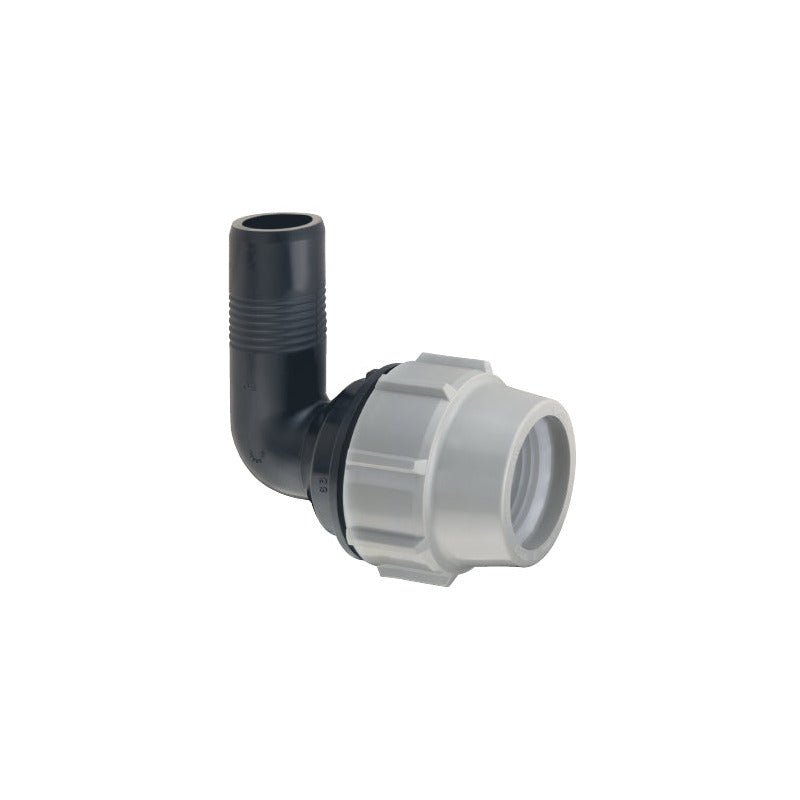

Plasson 90° Elbow Adaptor

The Plasson 90° Elbow Adaptor provides a right-angle connection between different outlet sizes in polyethylene (PE) water pipe systems. It is suitable for water distribution and irrigation installations where a compact change of direction and size is required.

• 90° elbow adaptor for PE water pipework
• Available in 50 × 40 mm, 50 × 50 mm and 63 × 50 mm sizes
• PN16 pressure rating for water
• High-grade polypropylene copolymer body and nut
• Polyacetal split ring with NBR seal
• Manufactured to ISO 17885 for water applications

Select the variant to match the required pipe and adaptor sizes.

Body material: high-grade polypropylene copolymer.
