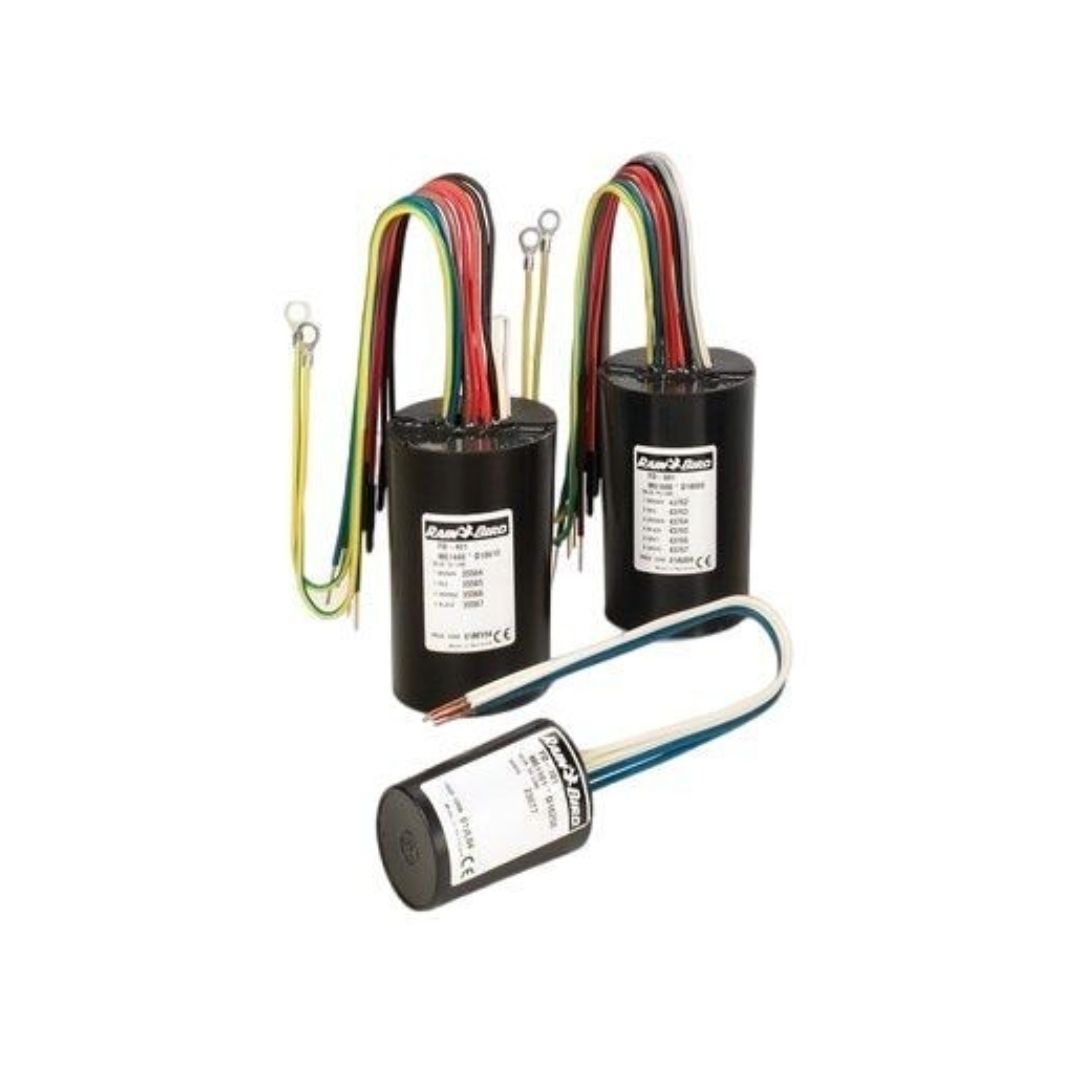

Rain Bird 401 (FD-401) 4-Way Field Decoder

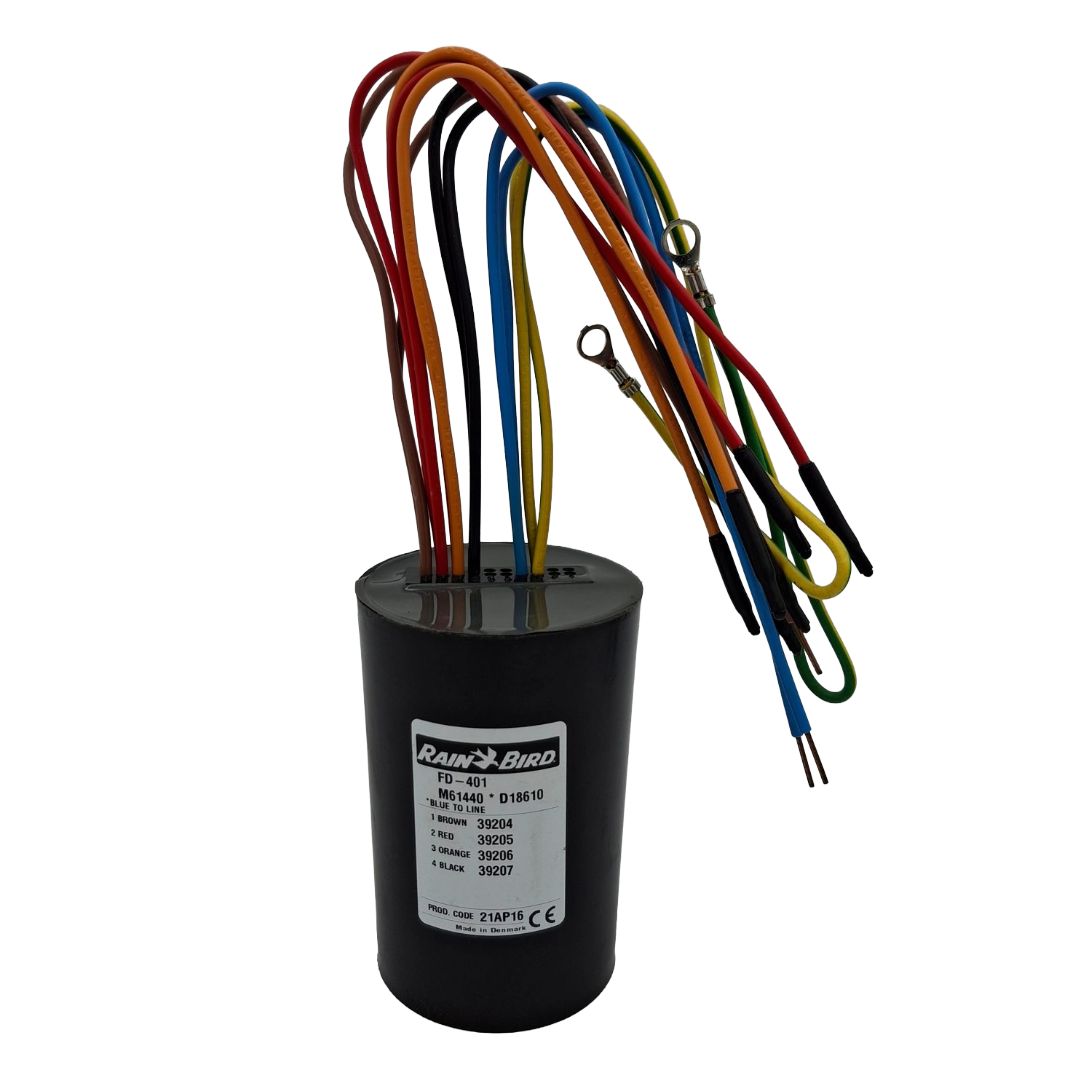

Rain Bird FD-401 four-address field decoder

The FD-401 provides four independently addressed valve outputs from one field decoder on a compatible Rain Bird ESP-LXD or SiteControl two-wire system.

Output and compatibility

• Four decoder addresses.
• One solenoid per address.
• Four separately controlled valve outputs.
• Built-in line surge protection.
• Fully waterproof for valve-box installation or direct burial to Rain Bird requirements.

Installation note: Record all four factory-coded addresses against the station plan and use approved waterproof cable joints. The FD-401 includes surge protection at the decoder, but the complete two-wire path still needs to follow Rain Bird's grounding and surge-protection design.

On-page guidance: The gallery shows Rain Bird FD decoder address and solenoid capacities for ESP-LXD systems, plus the manufacturer’s typical valve-box wiring layout. The layout illustrates one valve; the number of output pairs depends on the decoder model. Match every output pair and address to the valve plan, use approved 3M DBR/Y waterproof splice kits on the two-wire path and follow the complete system instructions for earthing, surge protection and cable limits. Keep the full document below for the remaining technical information.

Rain Bird ESP-LXD controller and decoder manual (PDF).

Rain Bird manufacturer part number: M61401N
