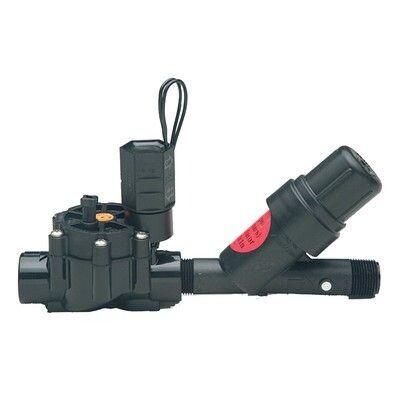

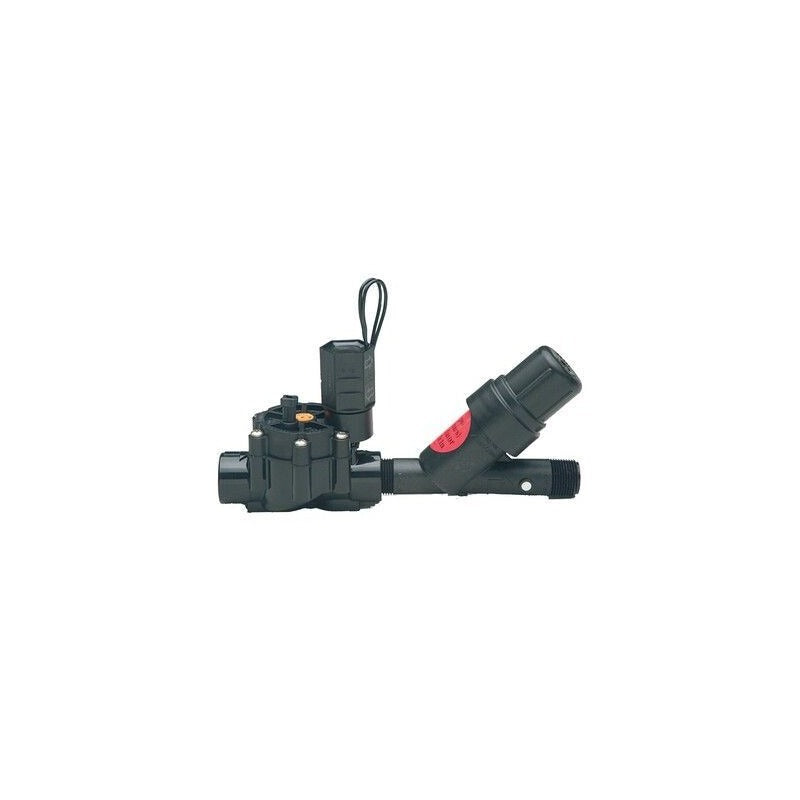

Rain Bird 1-inch 24 V AC DV Control Zone Kit with RBY-PRF Filter

This assembled Rain Bird control-zone kit combines a 1-inch 24 V AC DV valve with a 1-inch pressure-regulating RBY filter. It provides on/off control, filtration and pressure regulation for a compatible medium-flow drip irrigation zone.

Specification

• Valve: 1-inch Rain Bird DV, 24 V AC
• Filter/regulator: 1-inch PR RBY
• Flow range: 11.4 to 56.8 L/min
• Inlet pressure: 1.4 to 10.3 bar
• Regulated outlet pressure: 2.8 bar
• Filtration: 200 mesh stainless-steel screen, 75 micron

Installation

Install the pressure-regulating filter downstream of the valve and follow Rain Bird's control-zone installation instructions. For indoor installations, or where emitters are more than 1.5 m above the kit, Rain Bird specifies a check valve after the filter.

Selection note: confirm the 1-inch connection standard, available flow and required 24 V AC control before ordering.
