Rain Bird ESP-BAT-BT Bluetooth Battery Operated Controller

Rain Bird ESP-BAT-BT Bluetooth battery controller

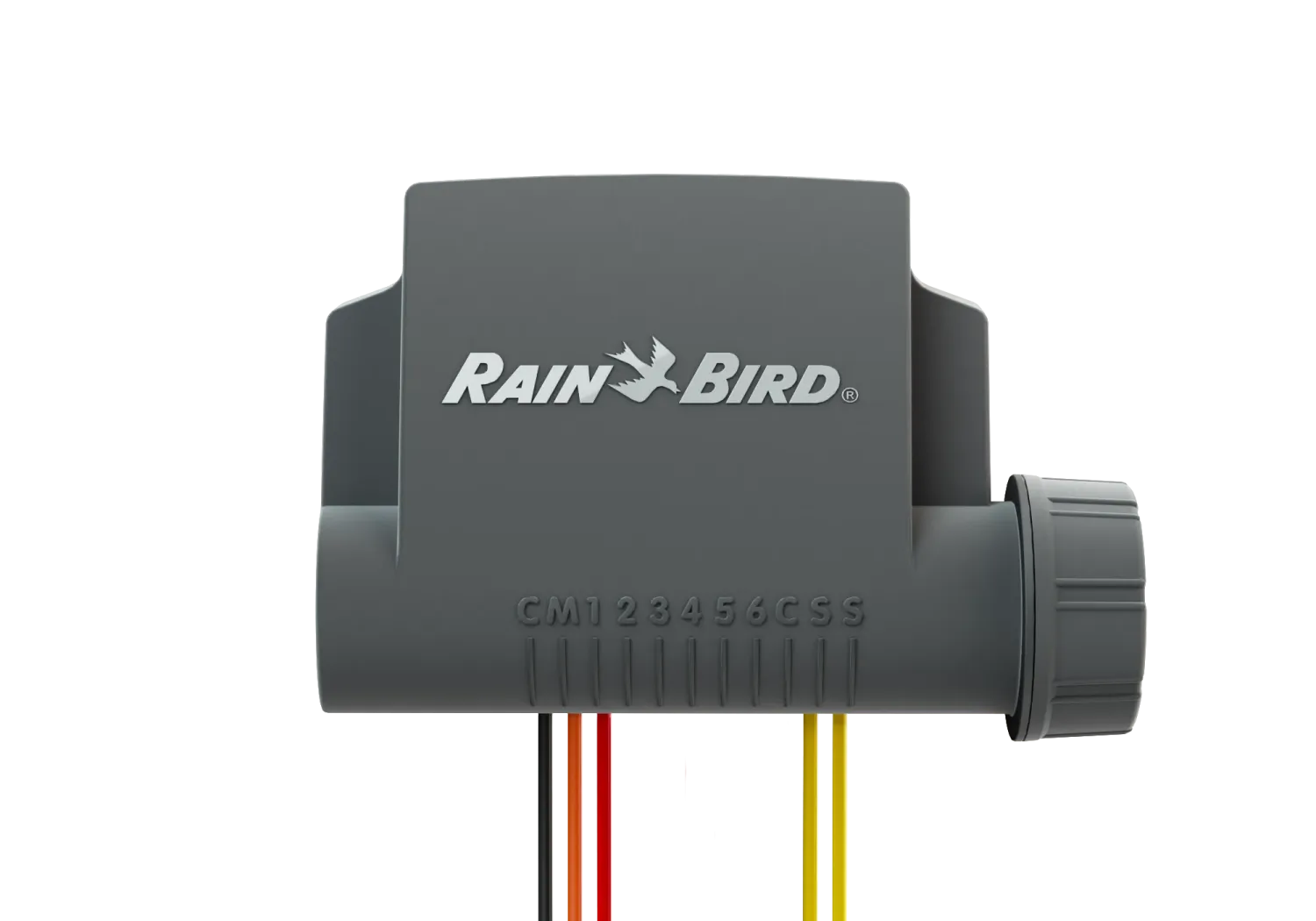

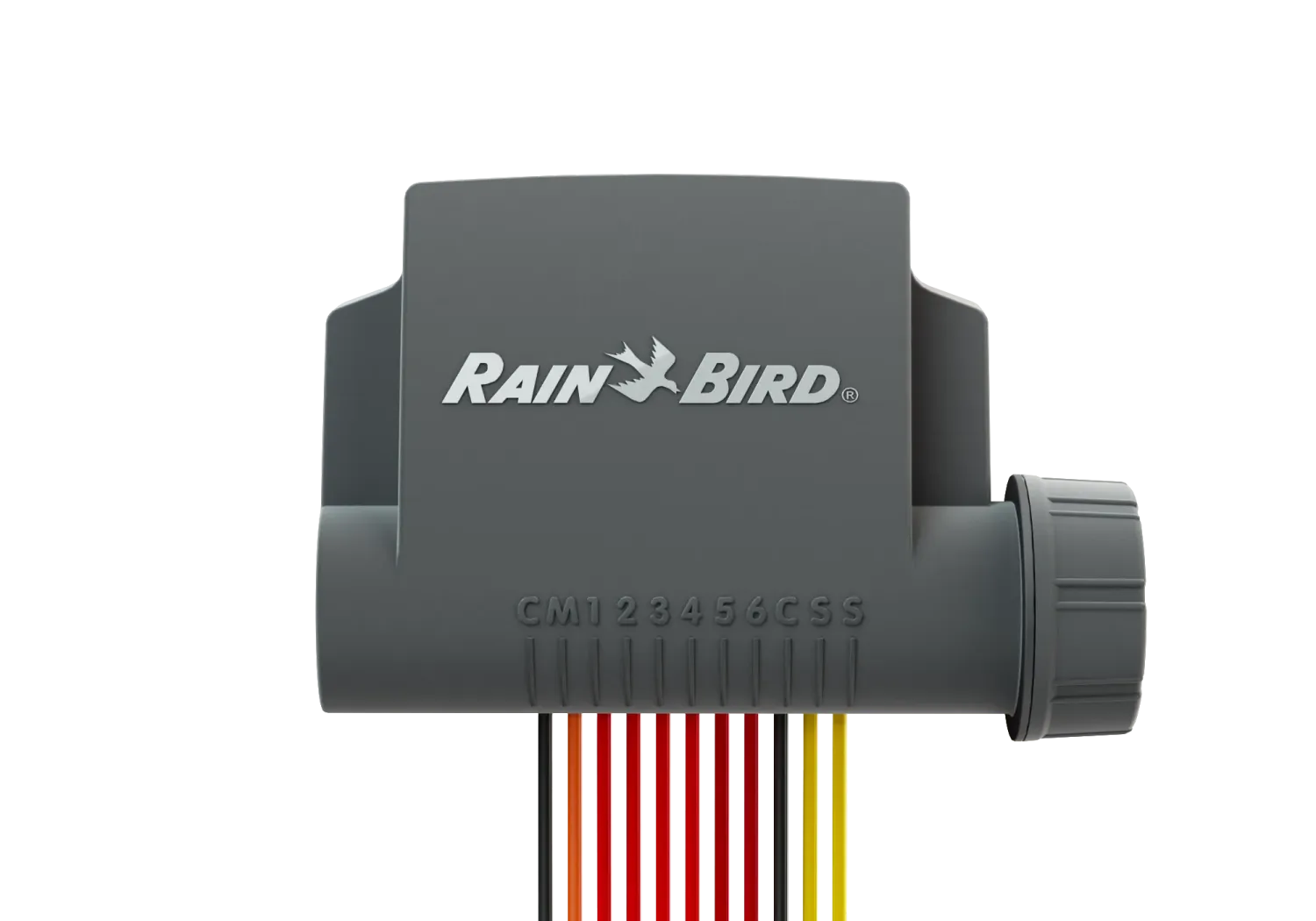

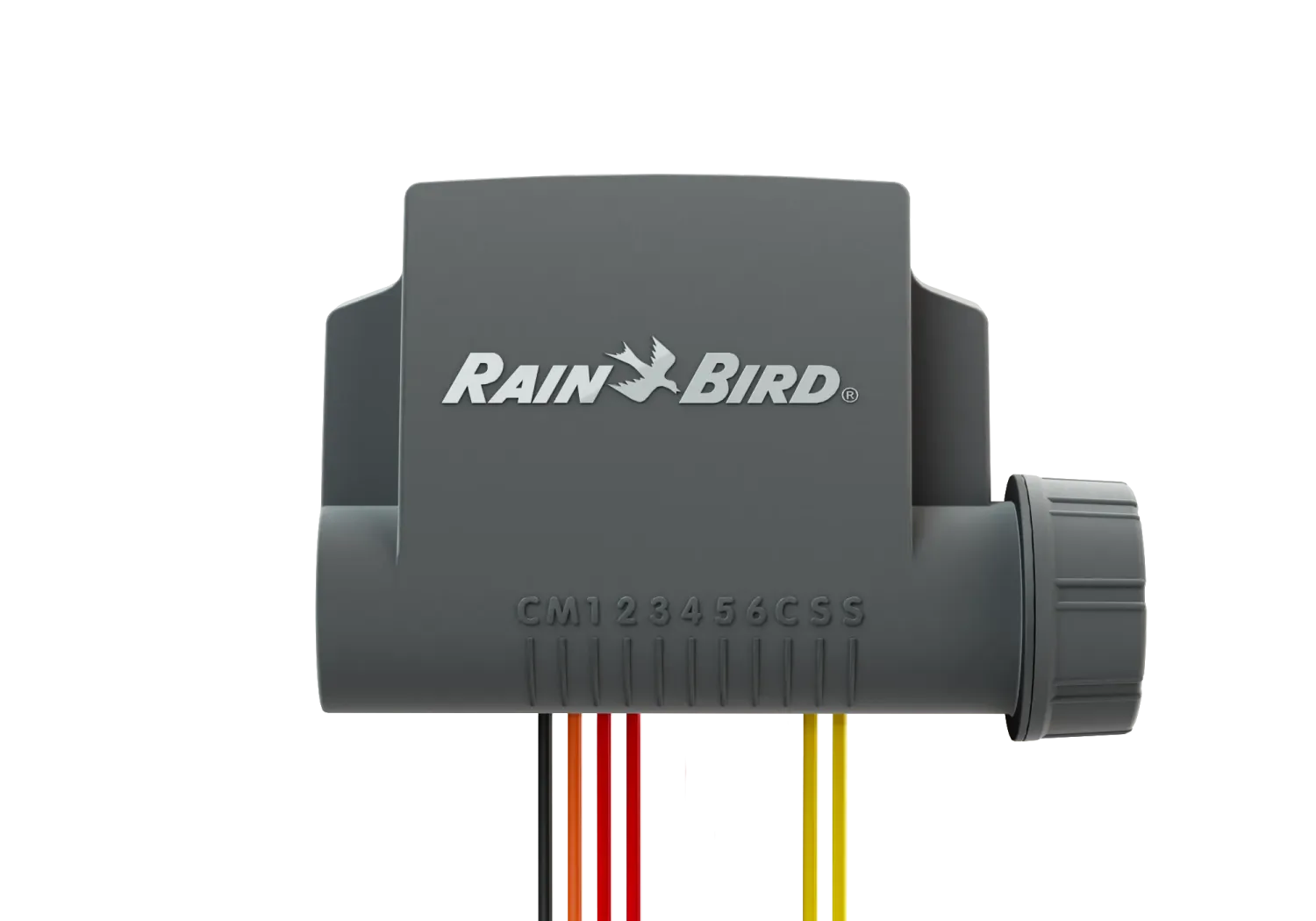

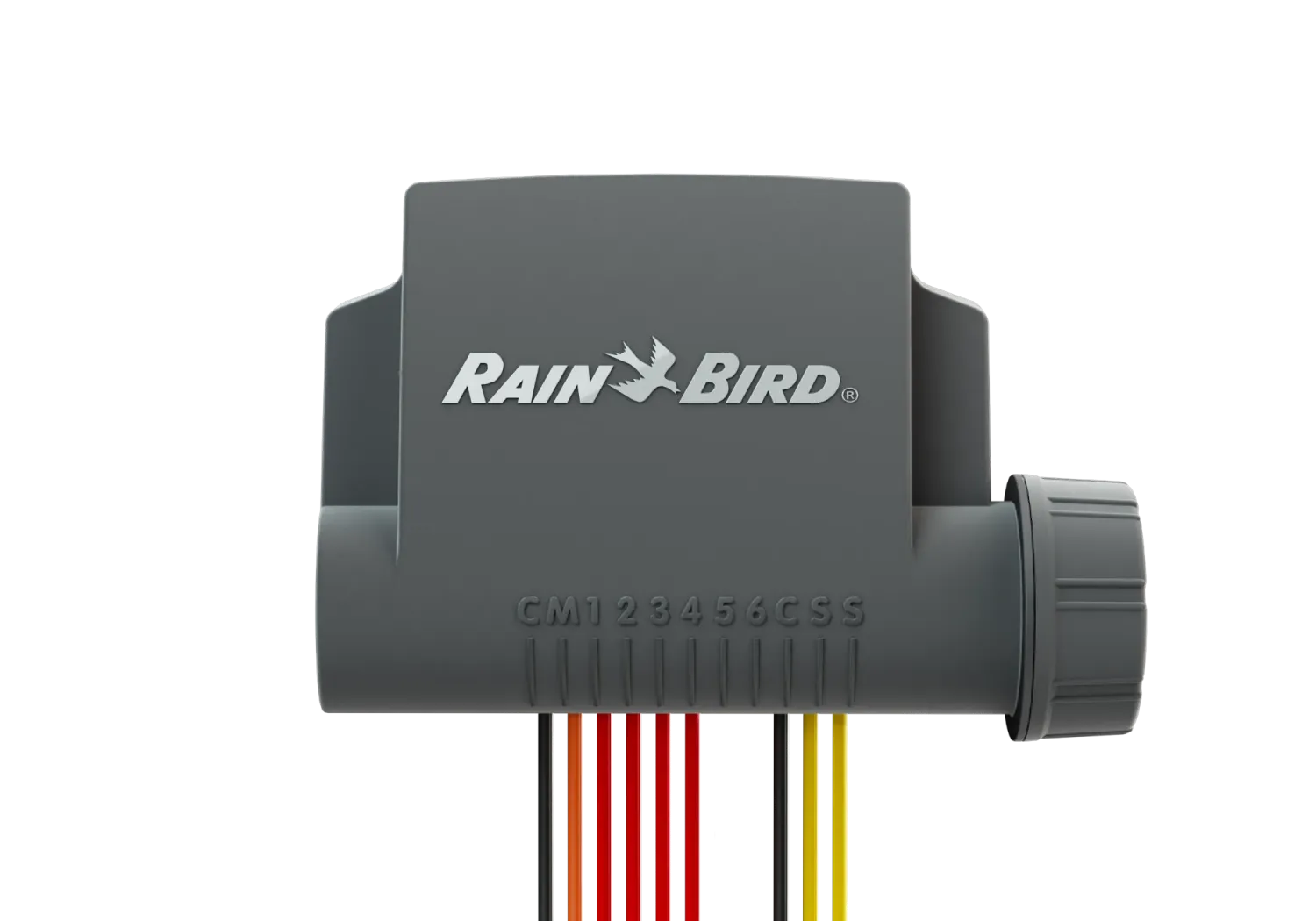

The ESP-BAT-BT controls irrigation where no mains supply is available. Choose the 1-, 2-, 4- or 6-station model, then programme and service it locally through the Rain Bird 2.0 app over Bluetooth.

Control and field features

• Four independent programmes with up to eight start times per day.
• Seconds-based irrigation down to 7 seconds, with Cycle & Soak for reducing run-off.
• Monthly seasonal adjustment, rain delay and calendar days off.
• Offline app mode lets changes be prepared away from the controller and synchronised when back within Bluetooth range.
• Controller sharing and map-based battery status help teams manage several sites.
• Dedicated master-valve or pump output and a connection for a compatible Rain Bird rain sensor.

Power and valve compatibility

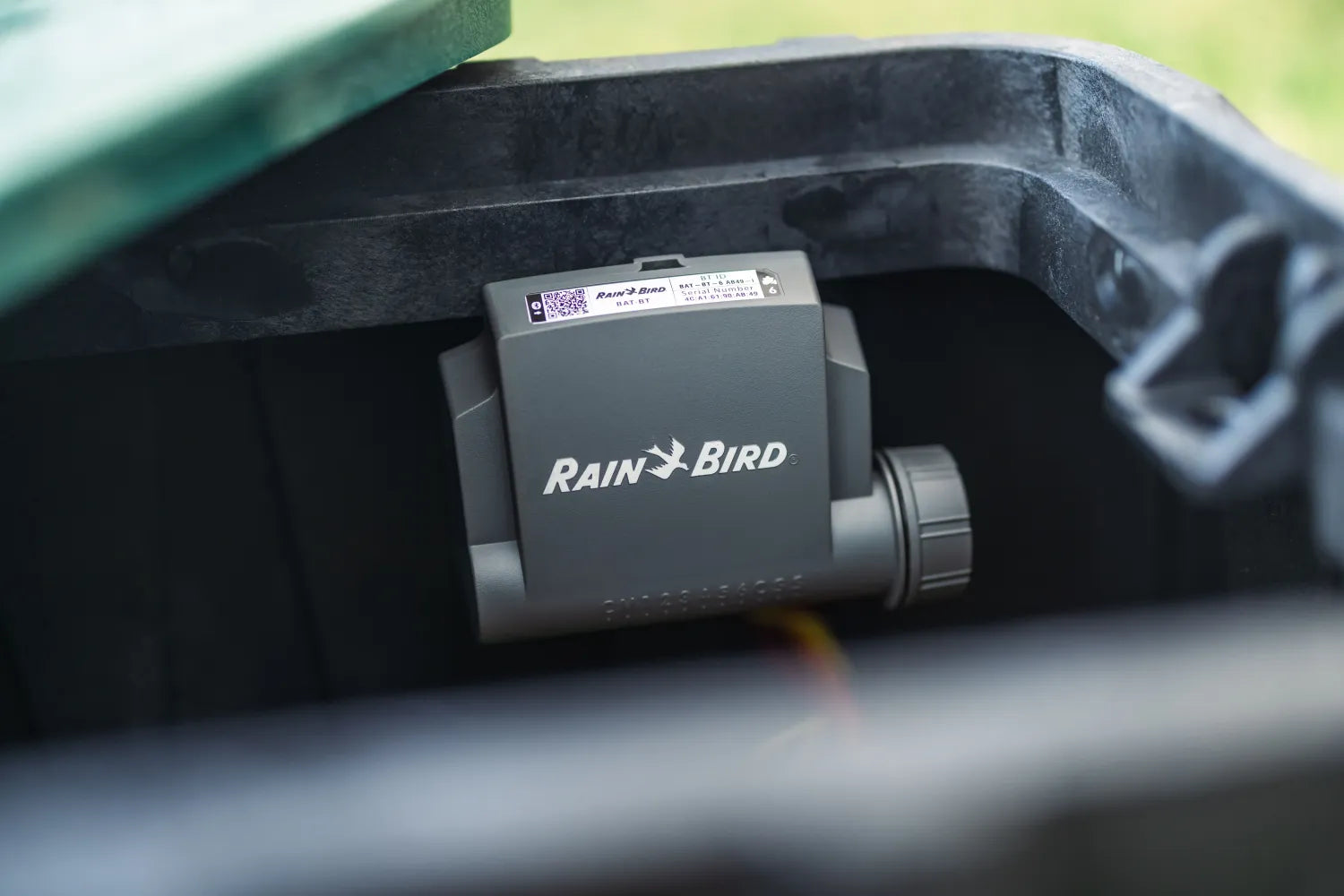

• IP68 waterproof enclosure for valve-box installation.
• Uses four AA alkaline batteries; batteries are not included.
• Rain Bird states up to five years of battery life, depending on battery quality, station count and programming.
• Operates compatible 9 V DC latching solenoids, not standard 24 V AC solenoids.

Selection note: Match the station count to the number of independently controlled valves. Confirm the solenoid type before ordering; the controller is intended for compatible 9 V DC latching solenoids.

Rain Bird ESP-BAT-BT product information and official guides and support documents.
