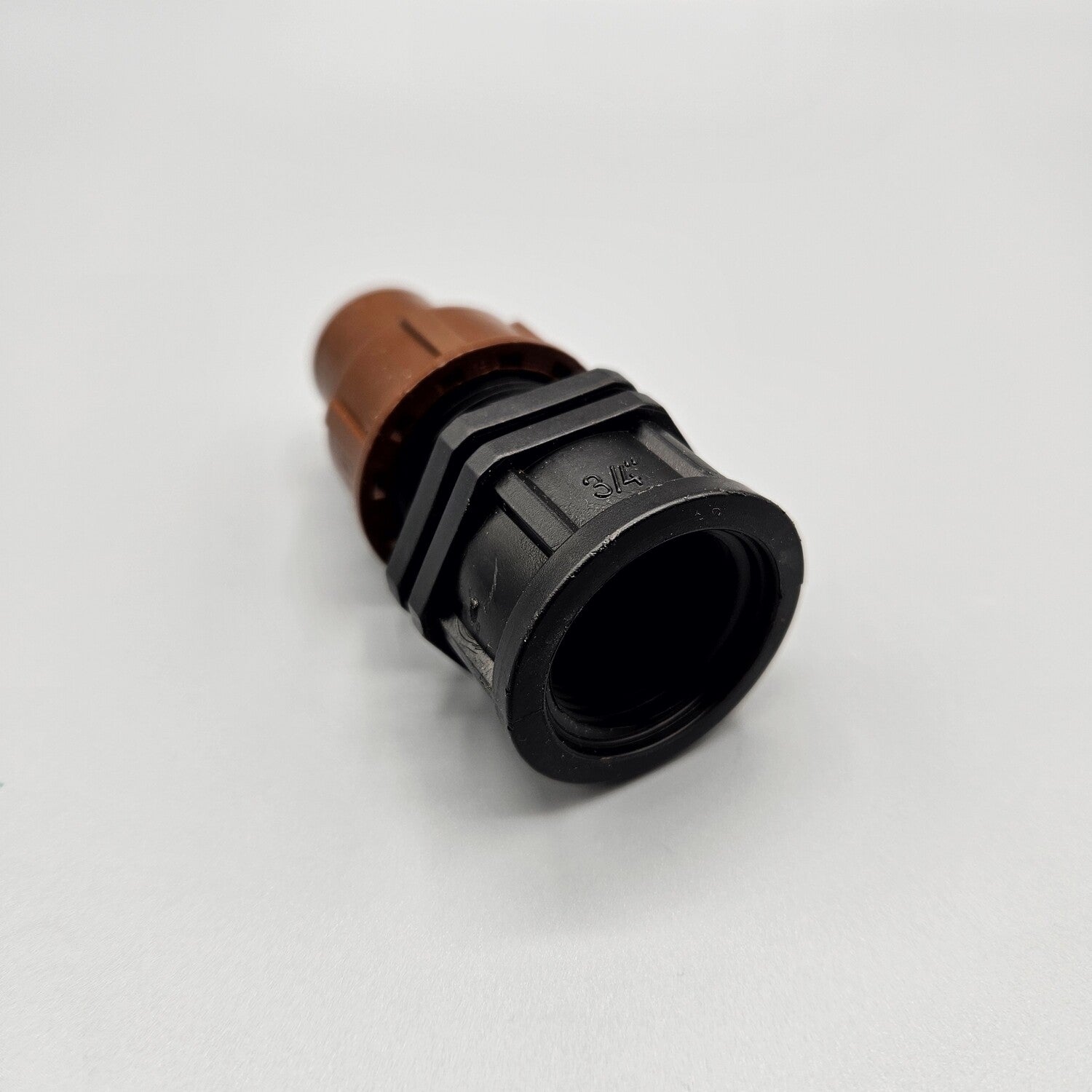

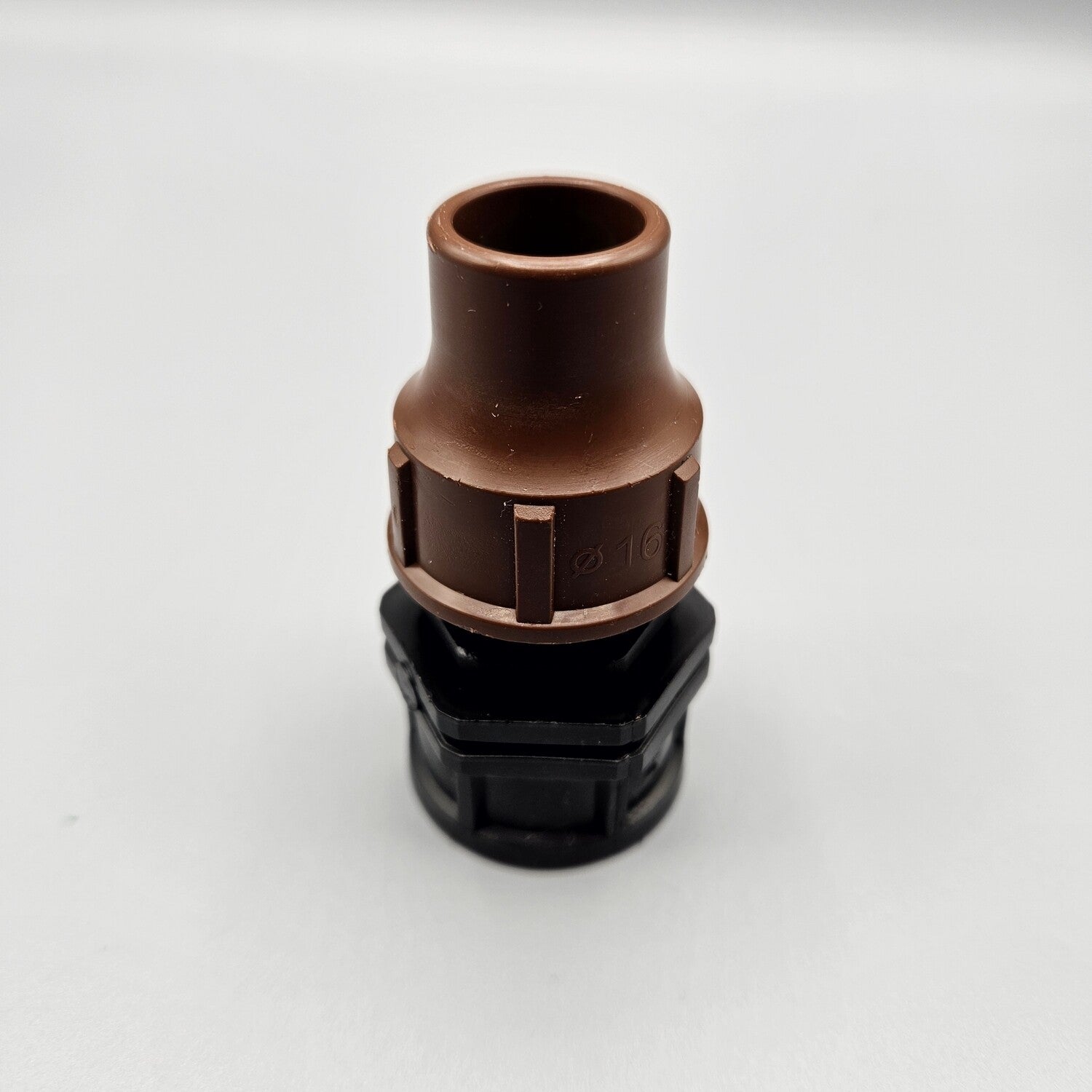

Rain Bird Lock-Type Coupling, 16 mm Tube x ¾-inch Female BSP

This lock-type adaptor connects compatible 16 or 17 mm low-density polyethylene irrigation tubing to a 3/4-inch BSP male-threaded component. The female threaded outlet is suited to drip and landscape-watering assemblies where a removable threaded transition is required.

Connections

• Tube side: lock-type compression connection for compatible 16 or 17 mm irrigation tubing.
• Threaded side: 3/4-inch BSP female thread.
• Application: dripline and low-pressure landscape irrigation pipework.

Installation

Cut the tube square, insert it fully into the compression side and tighten the locking nut. Connect the BSP male component using a thread-sealing method suitable for the adjoining fitting and system.

Important: Confirm the tube outside diameter and BSP thread before ordering. Do not select only by the nominal tube description, as irrigation tubing dimensions vary between ranges.
