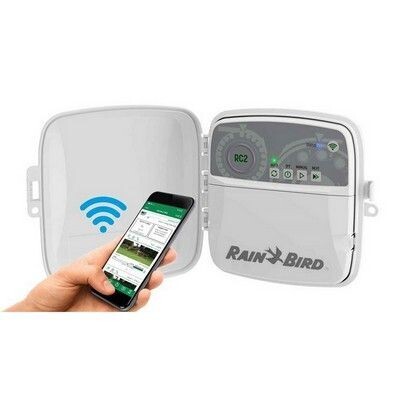

Rain Bird RC2 smart irrigation controller

The RC2 is a fixed-station, WiFi-enabled controller for residential irrigation. Choose a 4-, 6- or 8-station indoor model, or the 8-station outdoor version. Programming and day-to-day control are handled through the Rain Bird 2.0 app.

Programming and control

• Three independent programmes with four start times per programme.
• Station run times from 1 minute to 6 hours.
• Seasonal adjustment from 5% to 200%.
• Automatic rain delay, weather-based run-time adjustment and Cycle & Soak through the app.
• Guest Mode allows local app access when WiFi is unavailable.
• Shared access can be granted or revoked for installers or site managers.
• Connection for a local weather sensor and output for a master valve or pump-start relay.

Choose the correct enclosure

• Indoor models: for a dry, protected location.
• Outdoor model: weather-resistant enclosure for exposed installations.

Selection note: Station capacity is fixed and cannot be expanded. Confirm the station count, enclosure type, 230 V supply, 24 V AC valves and 2.4 GHz WiFi coverage before ordering.

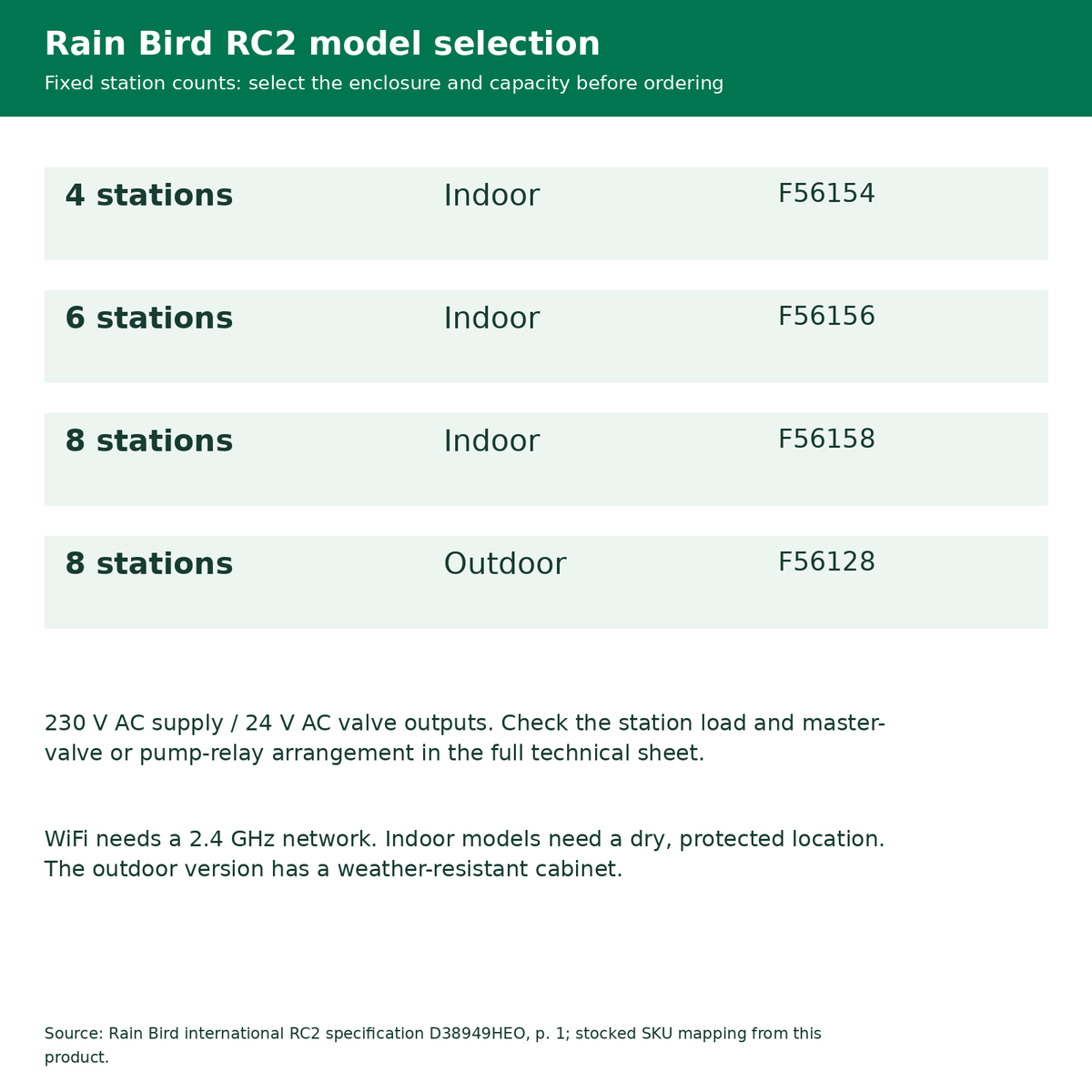

See the supporting gallery chart for the stocked RC2 station counts and enclosure choices, and the Rain Bird product-overview video. The full international technical sheet below retains electrical ratings and installation requirements.

Rain Bird RC2 product information and international RC2 technical specification (PDF).
