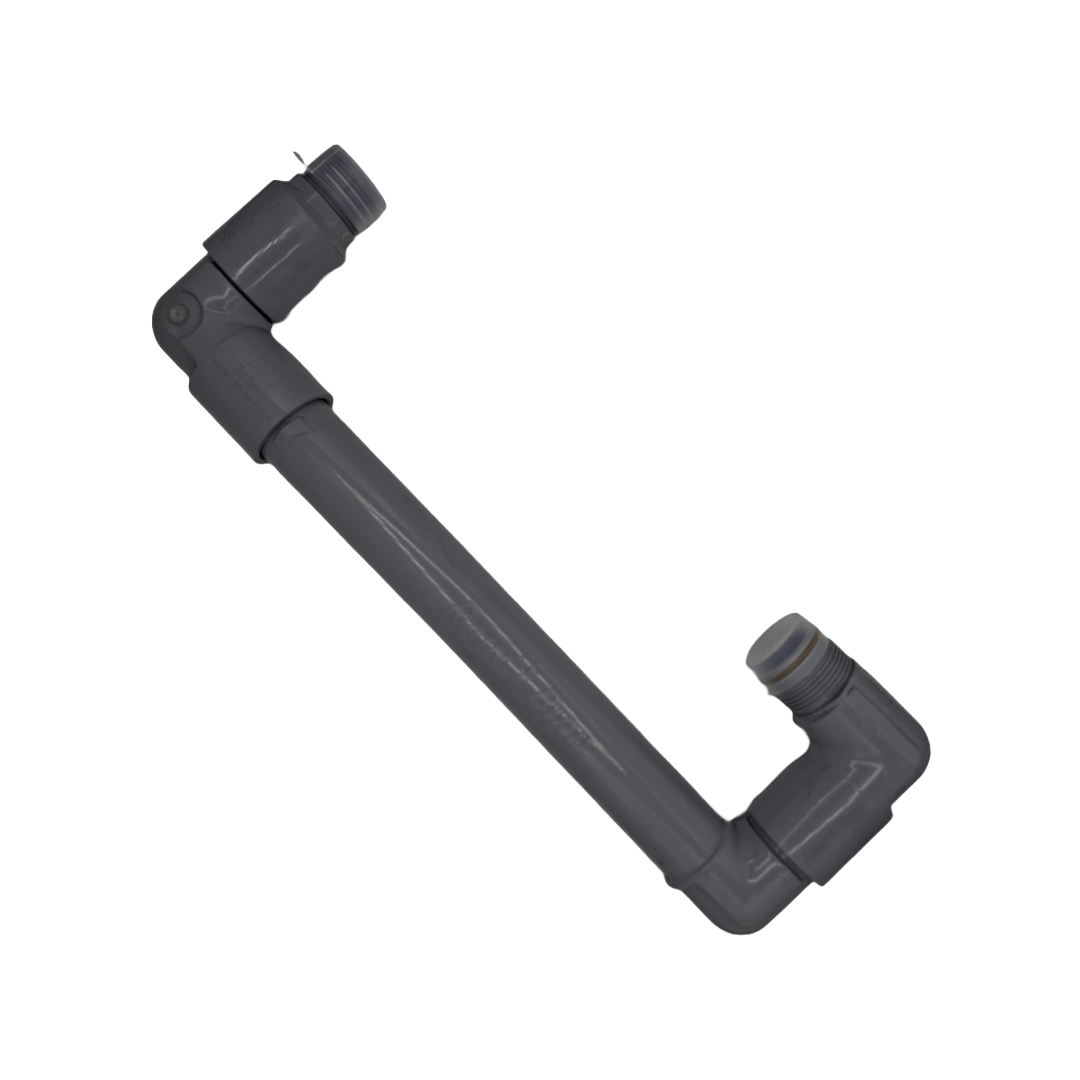

Rain Bird Swing Joint 1¼-inch BSP x 1¼-inch ACME x 18-inch length

Rain Bird 1¼-inch BSP to ACME Swing Joint

An 18-inch pre-assembled swing joint for positioning and connecting a compatible golf or large-turf rotor to the lateral pipework.

• Lay-arm diameter: 1¼-inch
• Lay-arm length: 18-inch / 45.7 cm
• Inlet: 1¼-inch BSP
• Outlet: 1¼-inch modified ACME
• Rigid PVC Type I construction
• Double O-ring seals at rotating joints
• Pressure rating: 21.7 bar at 22.8°C

Installation

Match both thread types to the service tee and rotor before ordering. Use a suitable seal on the BSP connection; the modified ACME connection seals with its O-ring. Hand-tighten threaded components and fully depressurise the system before adjusting or removing the rotor.
