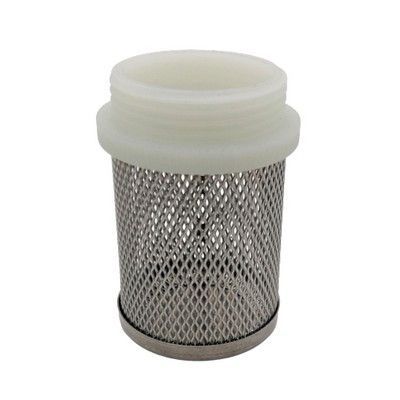

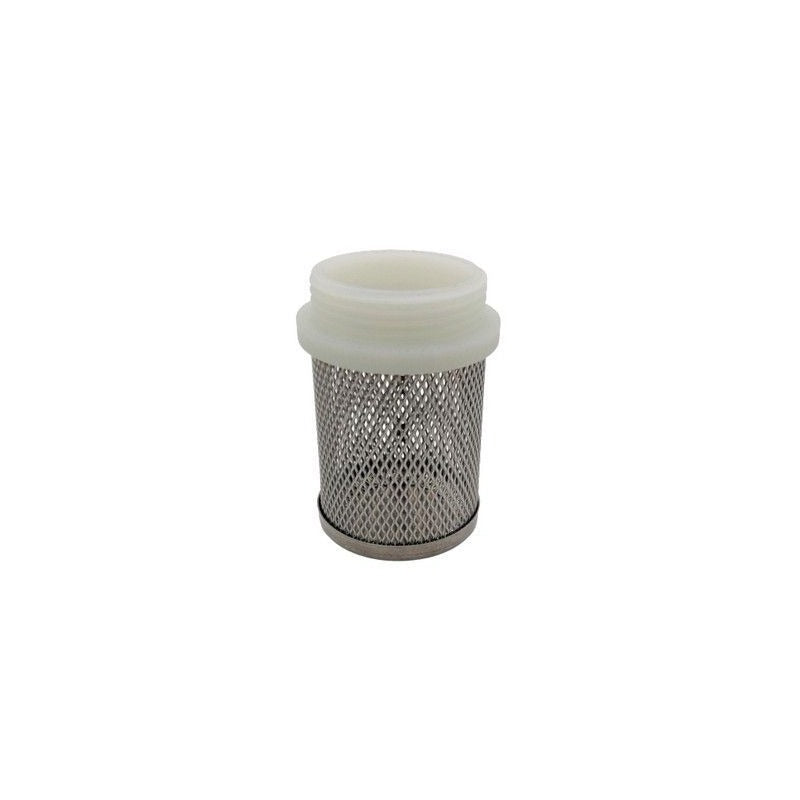

Stainless Steel Foot Valve Strainer

This suction strainer helps prevent debris from entering a compatible foot-valve or pump suction assembly. Its male BSPP connection screws into the matching female inlet component.

Specifications

• Material: 316 stainless steel
• Connection: male BSPP
• Available sizes: 1½-inch, 2-inch and 3-inch
• Mesh aperture: 1 mm for 1½-inch and 2-inch; 1.8 mm for 3-inch
• Pressure class: PN16
• Published temperature range: -20°C to 150°C

Match the connection size to the foot valve or suction fitting. Keep the screen clear and confirm the mesh, flow capacity, liquid compatibility and pump duty before installation.
