TAILONZ 4 mm Blue PU Airline Tubing (4 × 2.5 mm)
Flexible blue polyurethane airline tubing for pneumatic equipment, compressor air lines and automation. 4 mm outside diameter × 2.5 mm inside diameter.
Choose your length
- Per metre: select this option and enter the number of metres as the quantity. Quantity 3 means one continuous 3 m length. Maximum continuous length is 10 m; longer orders are supplied as separate lengths of up to 10 m.
- 10 m coil: each unit is one complete 10 m length of tubing.

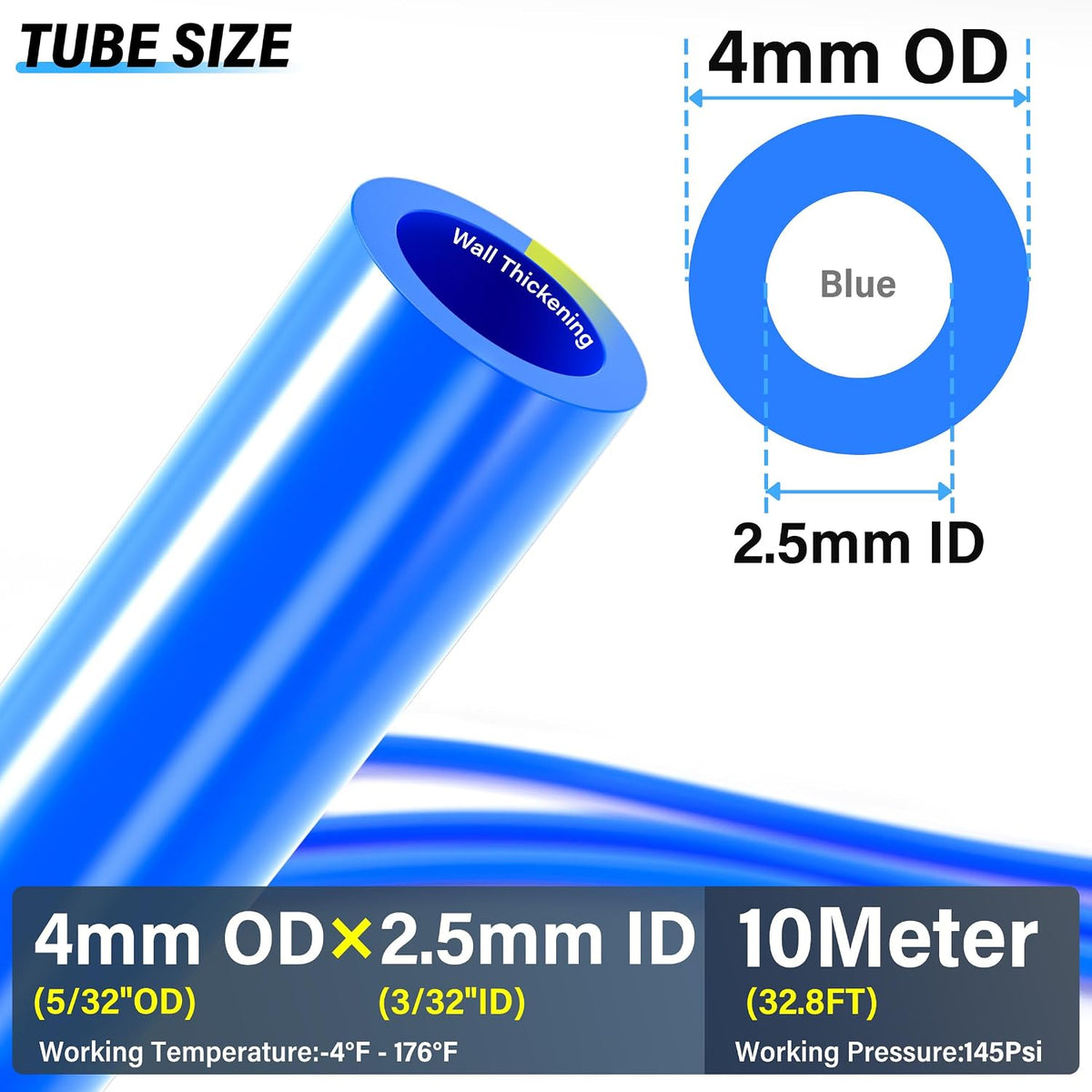

Tubing only. Fittings, cutters and tape are sold separately. Supplier diagrams showing 10 m illustrate the tubing size; the selected length determines what is supplied.
Specifications
| Outside diameter | 4 mm |
|---|---|
| Inside diameter | 2.5 mm |
| Material | Polyurethane (PU) |
| Colour | Blue |
| Supplier-stated working pressure | 1 MPa (10 bar) |
| Supplier-stated temperature range | −20°C to +80°C |
Installation and use
Match push-fit connections to the 4 mm outside diameter. Cut the end square, insert fully and check the completed connection for leaks. The complete system must stay within the lowest-rated component's limits; do not assume the tube pressure rating applies to fittings.
For window-cleaning, washdown or vehicle-mounted equipment, check the intended liquid, temperature and fitting compatibility before use. Chemical, drinking-water and vehicle air-brake suitability are not established for this tubing.
