Toro 24 V AC Coil

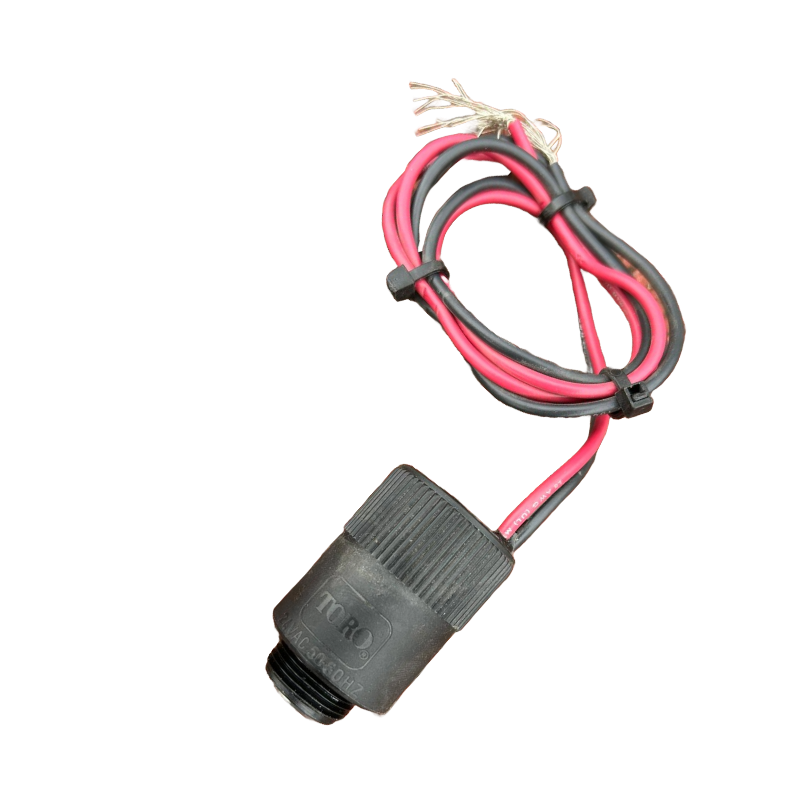

Toro 118-0248 24 V AC replacement solenoid

Genuine Toro electric solenoid assembly with red and black leads for compatible 24 V AC pilot-valve and irrigation-valve assemblies. Toro lists part 118-0248 in its golf sprinkler pilot-valve parts catalogue and in the 1½-inch and 2-inch 252 Series valve parts lists.

Choose the correct part

• Part number: 118-0248. Match this number and the pilot-valve or valve parts diagram before ordering.
• Control: 24 V AC. It is not a DC-latching solenoid and should not be substituted solely by matching the lead colours.
• Toro lists the plunger assembly separately in the parts breakdown. Check whether the existing plunger, spring and seals also need service.

System conversion: A change of controller does not by itself establish which coils to replace. Check whether the controller or decoder output operates 24 V AC or a DC-latching solenoid, and confirm the exact Toro valve or sprinkler pilot assembly. Isolate control power and use waterproof field connections during replacement.
