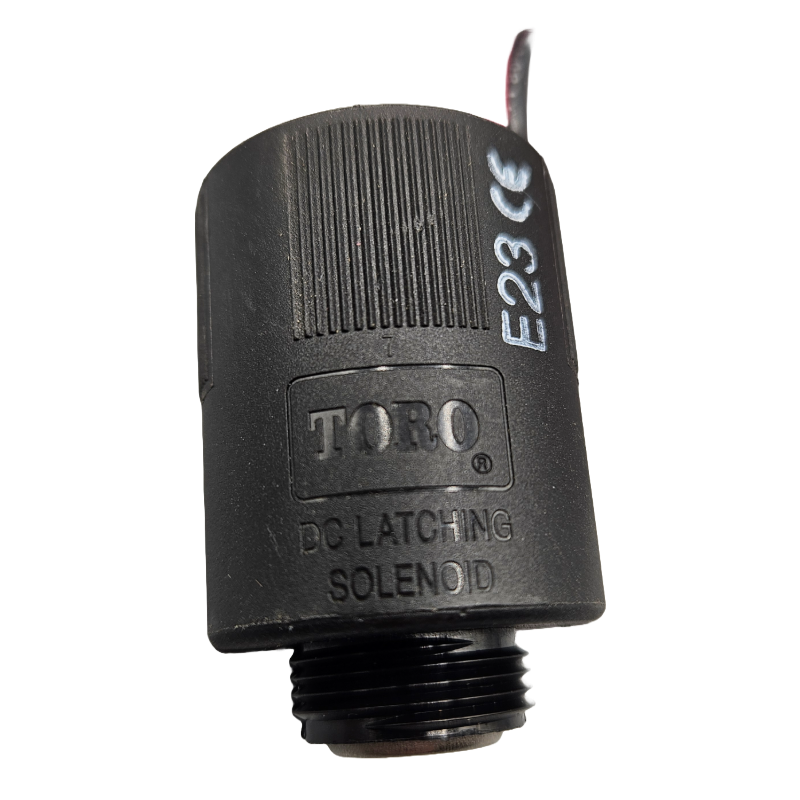

Toro DC Latching Coil

Toro DC Latching Coil – Efficient Battery-Powered Valve Control

The Toro DC Latching Coil is engineered for seamless integration with battery-operated irrigation controllers, providing reliable valve actuation without the need for continuous power supply.

Key Features:

• Wide Compatibility: Designed to suit Toro's EZ-Flo Plus, P-150, P-220, and 220 series valves, ensuring versatile application across various irrigation systems.
• Durable Construction: Constructed with wetted parts made from 400 stainless steel and Zytel, offering enhanced resistance to corrosion and wear.
• Low Power Consumption: Features a coil resistance of 9 ohms and inductance of 65 mH, ensuring minimal energy usage during operation.
• Easy Installation: Equipped with 45 cm red/white and black leads with PVC insulation, facilitating straightforward connection to controllers.

For efficient and reliable control of your irrigation valves in battery-operated systems, the Toro DC Latching Coil offers a robust solution that ensures consistent performance while conserving energy.

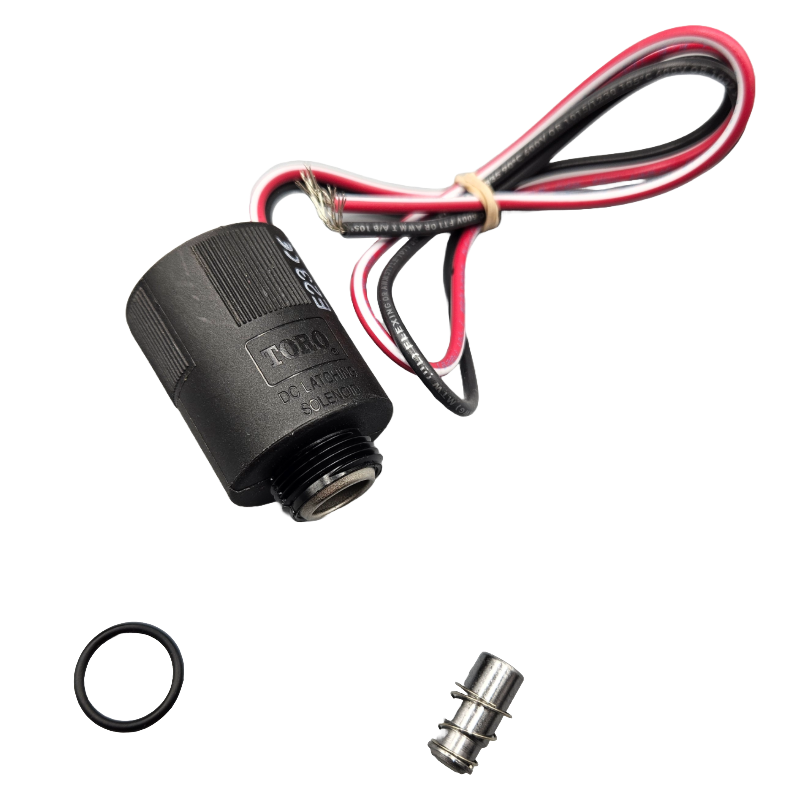

Toro DC Latching Coil complete with pin and o ring.
*The cables are Red with a White Stripe, and solid Black.

**This is used on Toro sprinklers and valves with DC only.
***Read what's on the side of your current coil and double check before ordering.
Example; You have a GDC system with GDC decoders or the newer LSM decoders/modules

****Be careful when wiring the coils, you must match the cables correctly. On the LSM decoders there are two red cables for the coils, one of the cables is Red with a Black stripe. Connect this to the Black coil cables, otherwise the decoder will turn the coil on and can't turn it off.
