Toro Flex 35 Sprinkler Complete

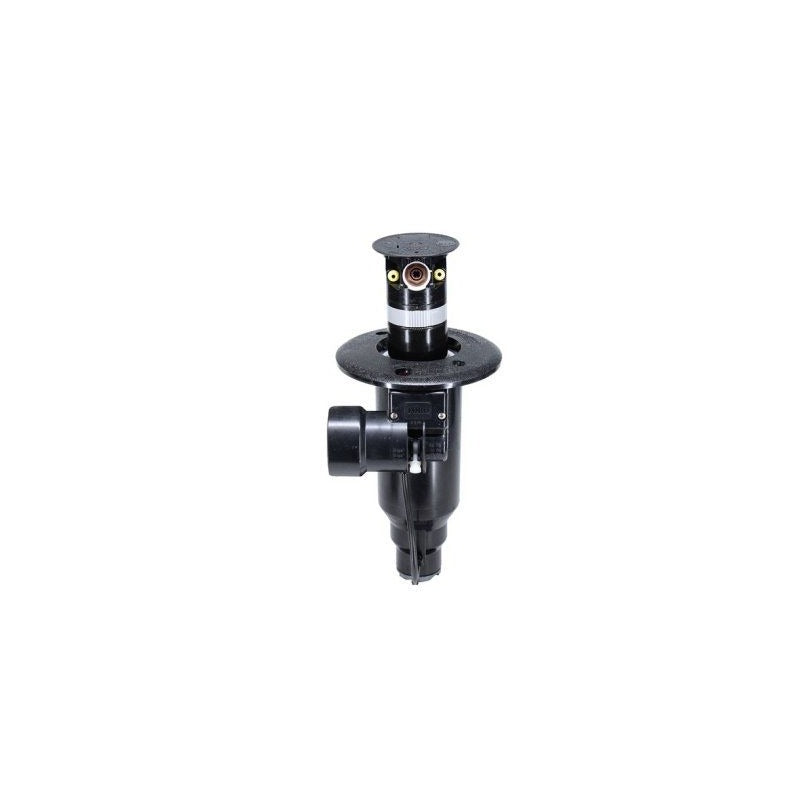

Toro FLEX35 complete valve-in-head golf sprinkler

This listed configuration combines a FLEX35-3134 adjustable-arc riser with the FLX30-56-1 1-inch BSP valve-in-head body and standard 24 V AC solenoid. It is supplied as a complete sprinkler rather than as separate body and riser listings.

Exact configuration

• Combined SKU: FLX35-3134&FLX30-56-1.
• Arc: adjustable 40°–330° part-circle or true 360° full-circle.
• Trajectory: selectable 15° or 25°.
• Nozzle group: 31–34.
• Inlet: 1-inch (25 mm) female BSP.

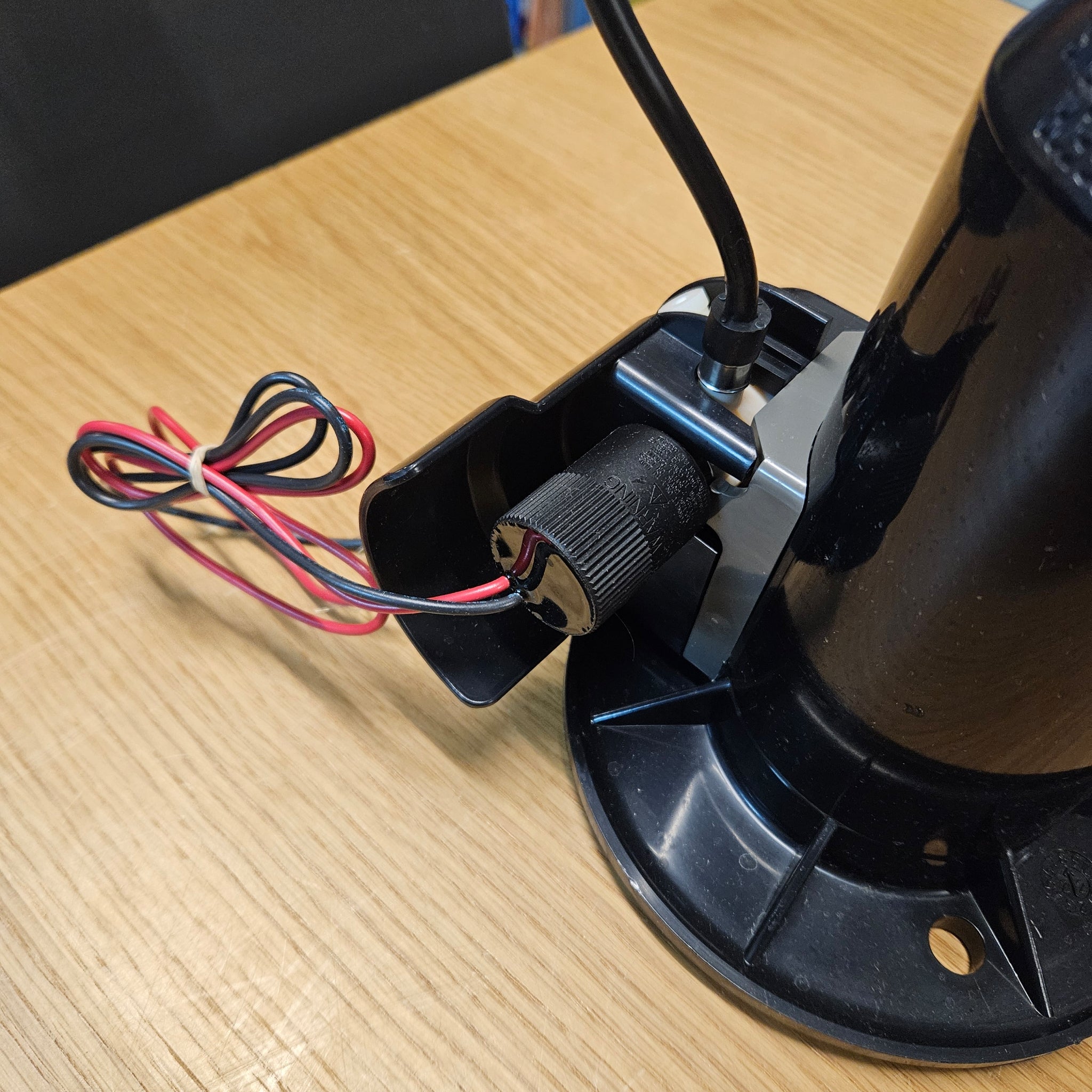

• Solenoid: standard 24 V AC, 50/60 Hz; 0.30 A inrush and 0.20 A holding current.

Published FLEX35 performance

• Radius: 13.1–25.3 m.
• Flow: 31–179 L/min, depending on nozzle and pressure.
• Recommended operating pressure: 4.5–6.9 bar; published minimum 2.8 bar and maximum 10.3 bar.
• Selectable pilot-valve settings: 3.4, 4.5, 5.5 or 6.9 bar.
• Body height: approximately 254 mm; pop-up height to nozzle: approximately 106 mm.
• Manual ON-OFF-AUTO control at the sprinkler.

Installation notes

• Use a suitable swing joint and bring the sprinkler top flush with finished grade.
• Seal the BSP connection with PTFE tape on the male thread only. Toro warns against paste-type pipe sealants on the sprinkler body.
• Use approved waterproof wire connections and leave a service loop for future maintenance.
• Select the exact nozzle and stator from Toro's performance tables for the required flow, radius and site conditions.

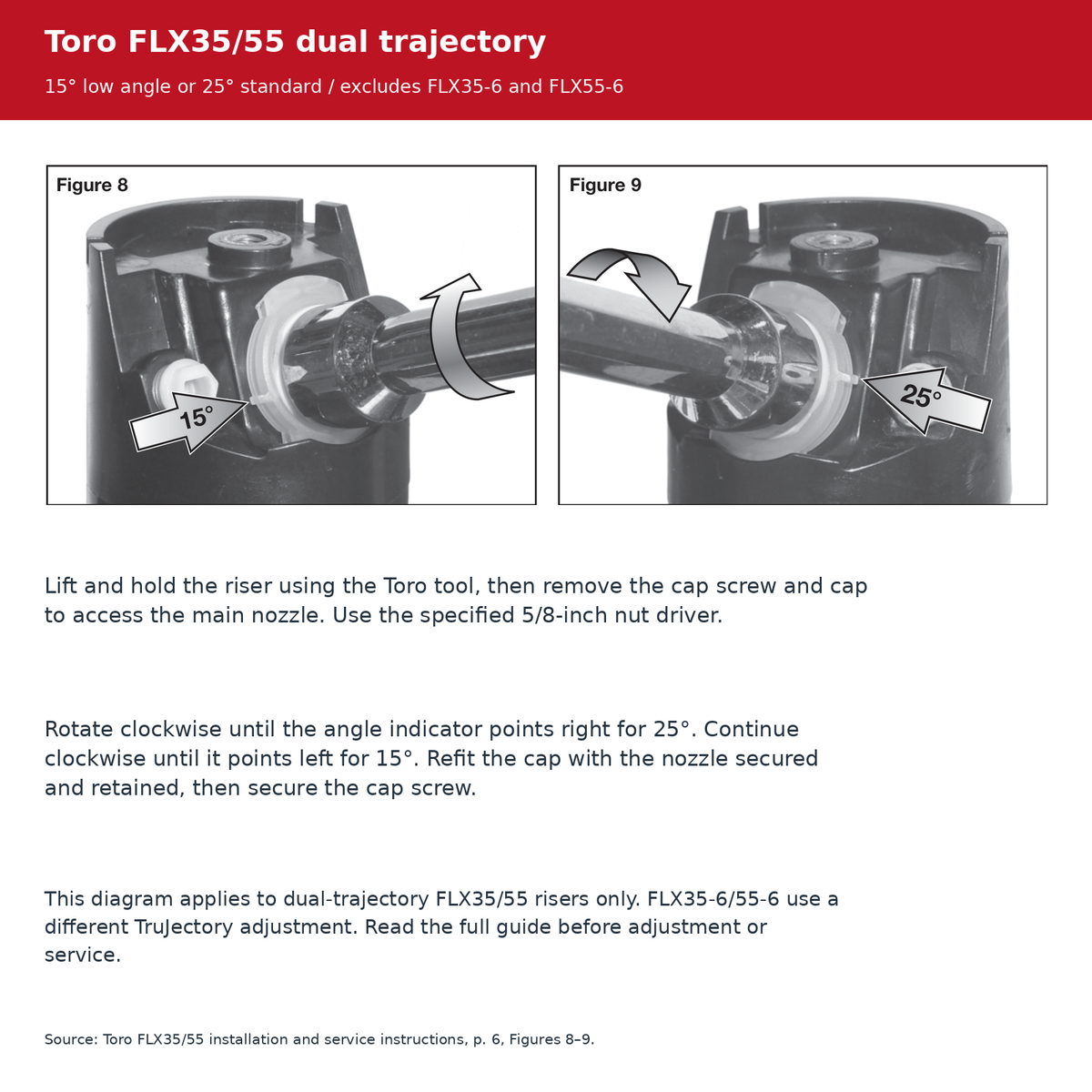

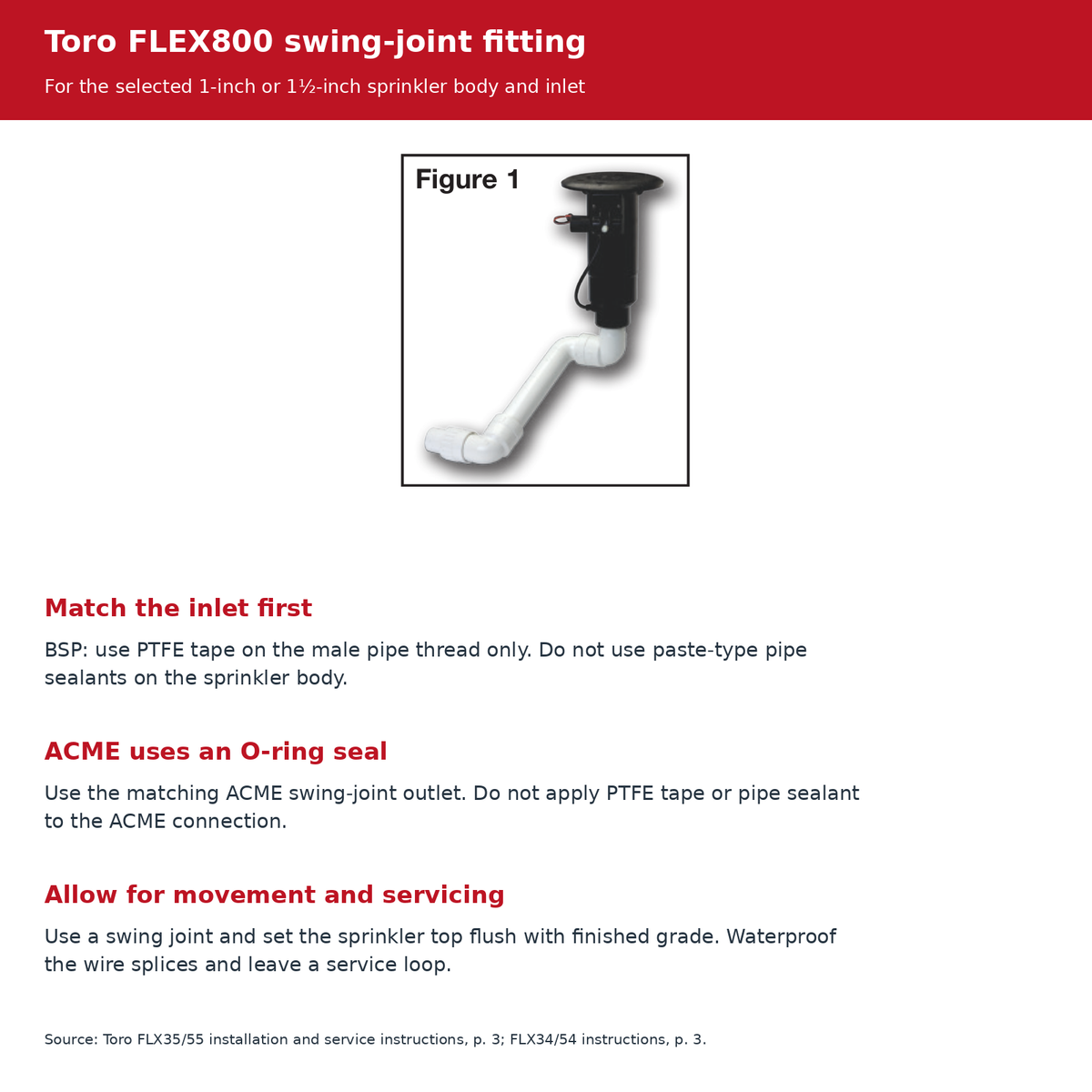

See the supporting gallery images for Toro’s FLEX800 swing-joint fitting and FLX35 dual-trajectory adjustment. The full guide below retains arc-setting, nozzle/stator tables and service procedures. Never stand or lean over the sprinkler during system filling, operation or servicing. Shut off the water supply and relieve residual pressure before removing a riser or main valve, and follow Toro’s controlled start-up procedure to avoid water hammer.

Toro FLEX35/55 installation, service and performance guide (PDF).
