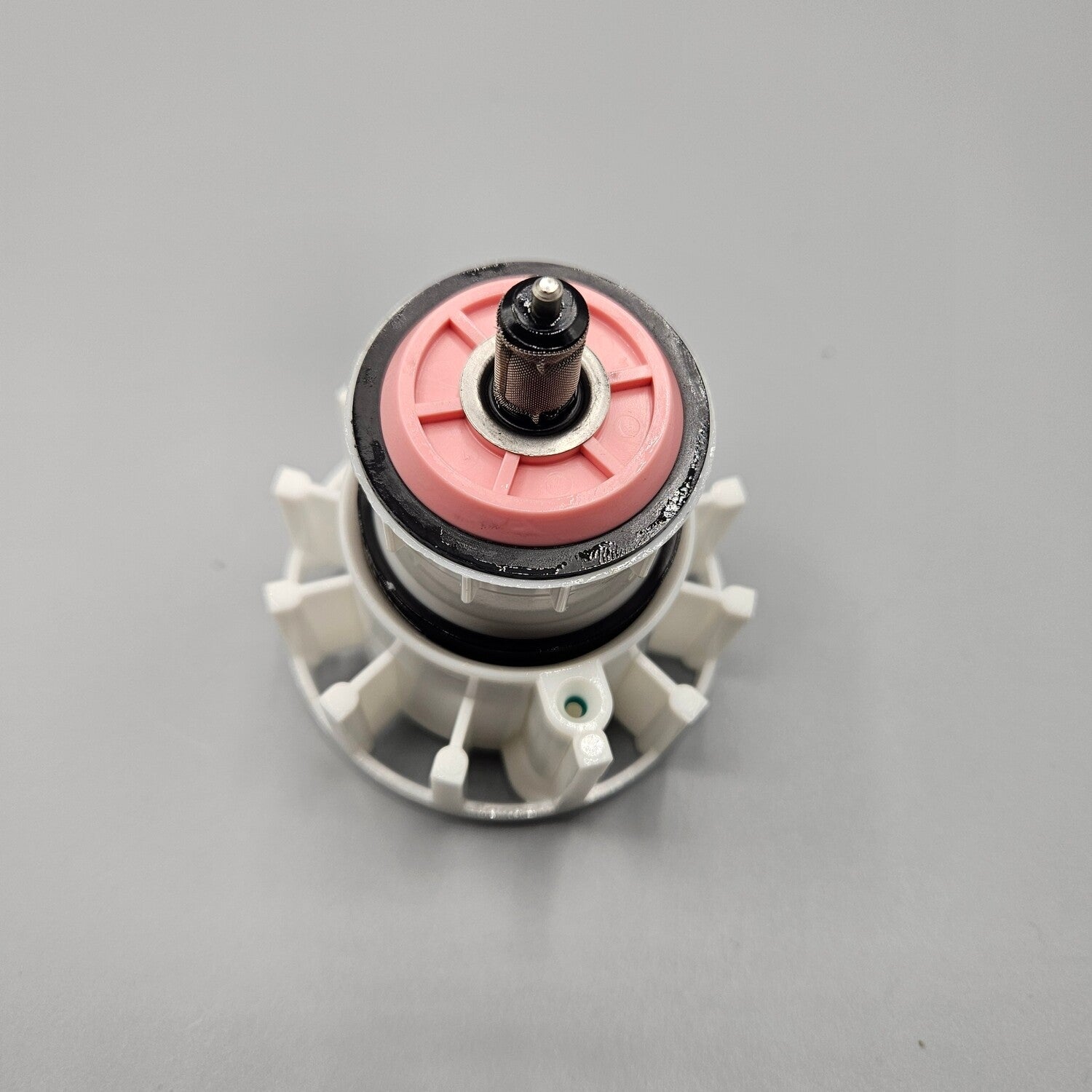

Toro Flex Piston / Foot Valve 1½-inch

Toro 102-4003 1½-inch electric valve assembly

Genuine Toro 1½-inch electric main-valve service assembly for compatible valve-in-head golf sprinkler bodies. Toro lists 102-4003 in both the 1½-inch FLEX/800S/DT body diagram and the 1½-inch INFINITY body diagram.

Assembly contents

• Part number: 102-4003.
• Nominal size: 1½ inches (40 mm).

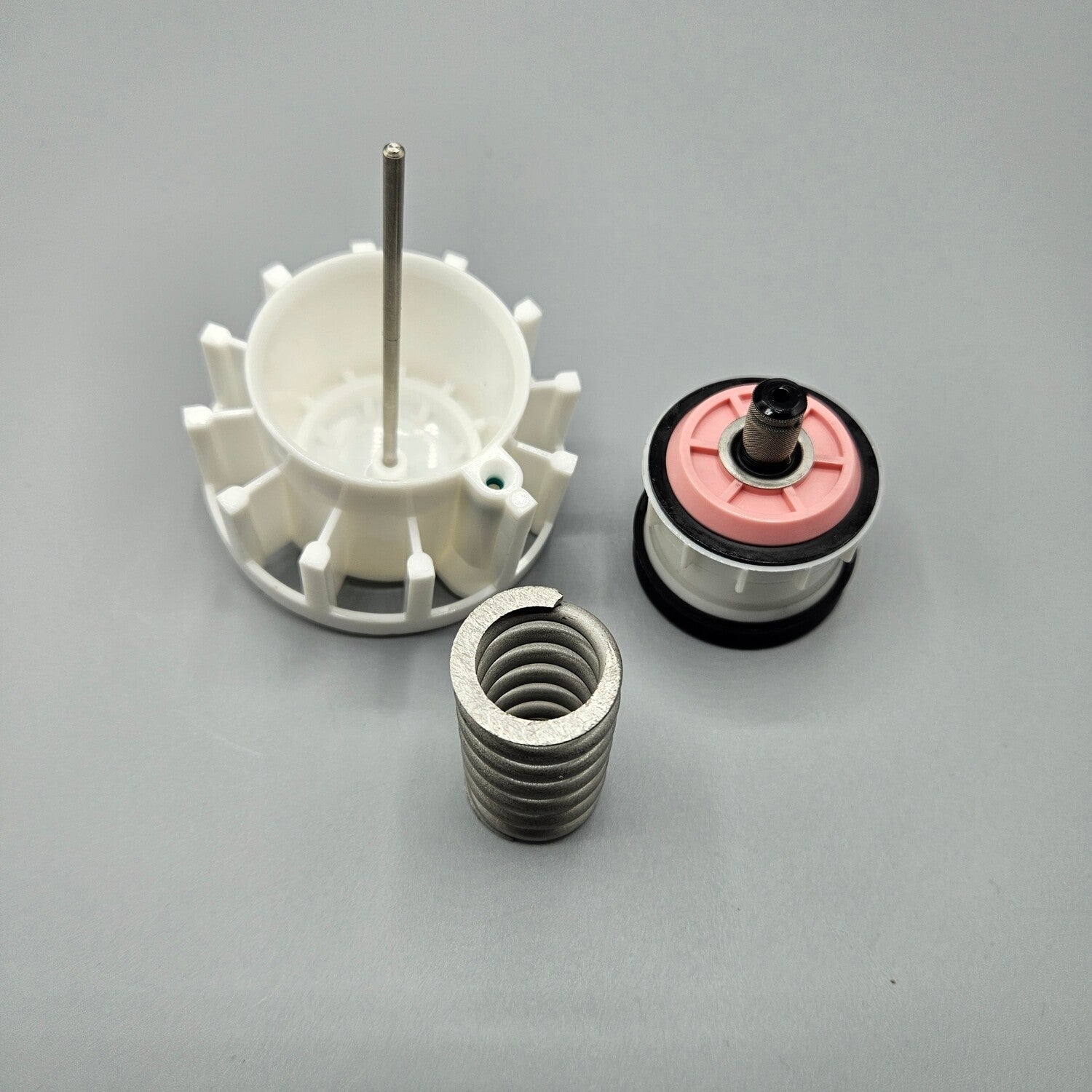

• Includes: 102-6142 cylinder assembly, 102-6411 valve spring, 35-9645 metering filter assembly and 102-5101 electric piston assembly.
• The pilot valve, solenoid, rock screen and 118-1843 insertion tool are separate parts unless expressly supplied by the seller.

Selection and safe servicing

Match part number 102-4003 to the exact sprinkler body diagram before ordering. This is an electric valve assembly; it is not the normally-open hydraulic or Check-O-Matic valve assembly.

• Shut off the water supply and bleed all residual pressure before removing the riser or main valve.
• Toro specifies insertion tool 118-1843 for reinstalling the 1½-inch valve and snap ring.
• Never stand or lean over a sprinkler while the system is filling, operating or being serviced.

Toro golf sprinkler body parts catalogue (PDF) and Toro INFINITY main-valve service instructions (PDF).
