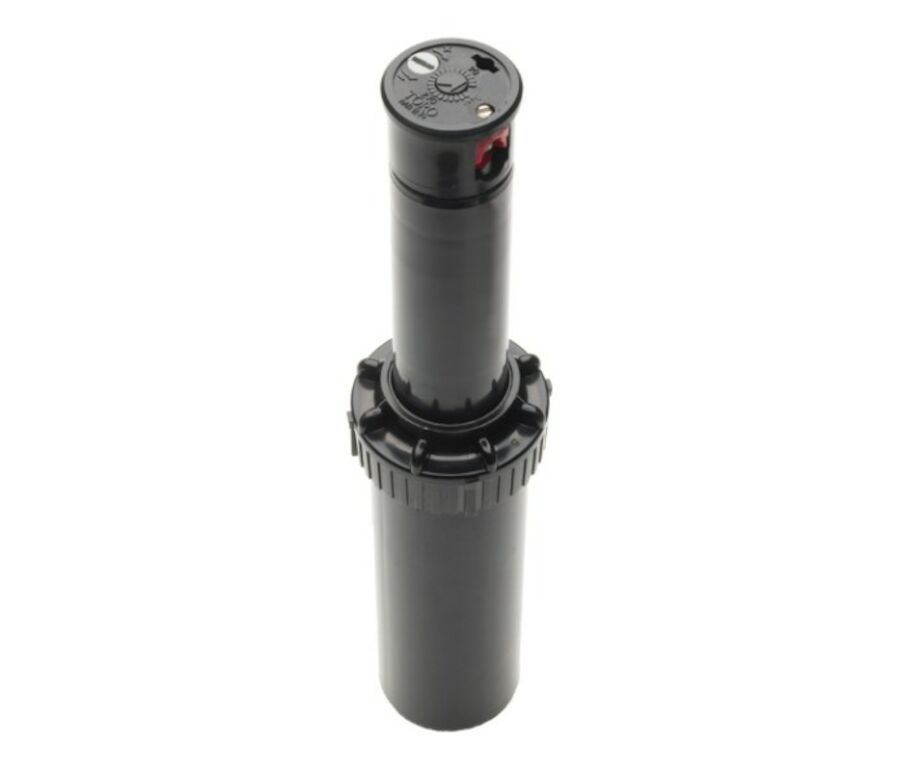

Toro Mini 8 Rotor

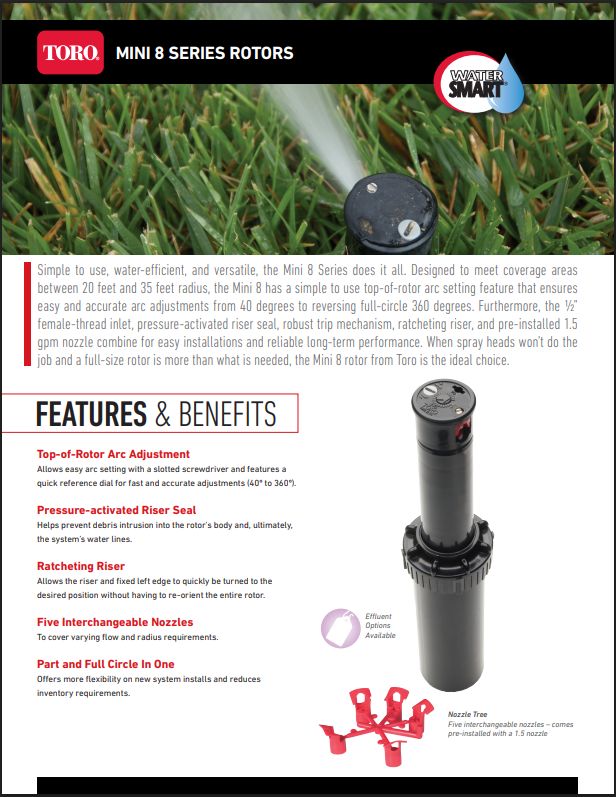

Compact Toro Mini 8 gear-driven rotor for turf areas that need more reach than a spray head but less than a full-size rotor. Model MINI8-4P combines part- and full-circle adjustment in one 100 mm pop-up body.

Operating specifications

• Adjustable arc: 40° to 360°
• Radius: 6.1–10.7 m
• Flow: 3.0–12.9 l/min, depending on nozzle and pressure
• Operating pressure: 2.1–4.1 bar
• Pop-up height: 95 mm
• Body height: 150 mm
• Inlet: ½-inch female thread
• Five interchangeable nozzle sizes; 1.5 nozzle pre-installed

Selection and installation

Confirm the regional inlet thread standard and available pressure before ordering. Design spacing from the selected nozzle’s performance data, and flush the pipework before fitting the rotor.
