Toro Pilot Valve Set

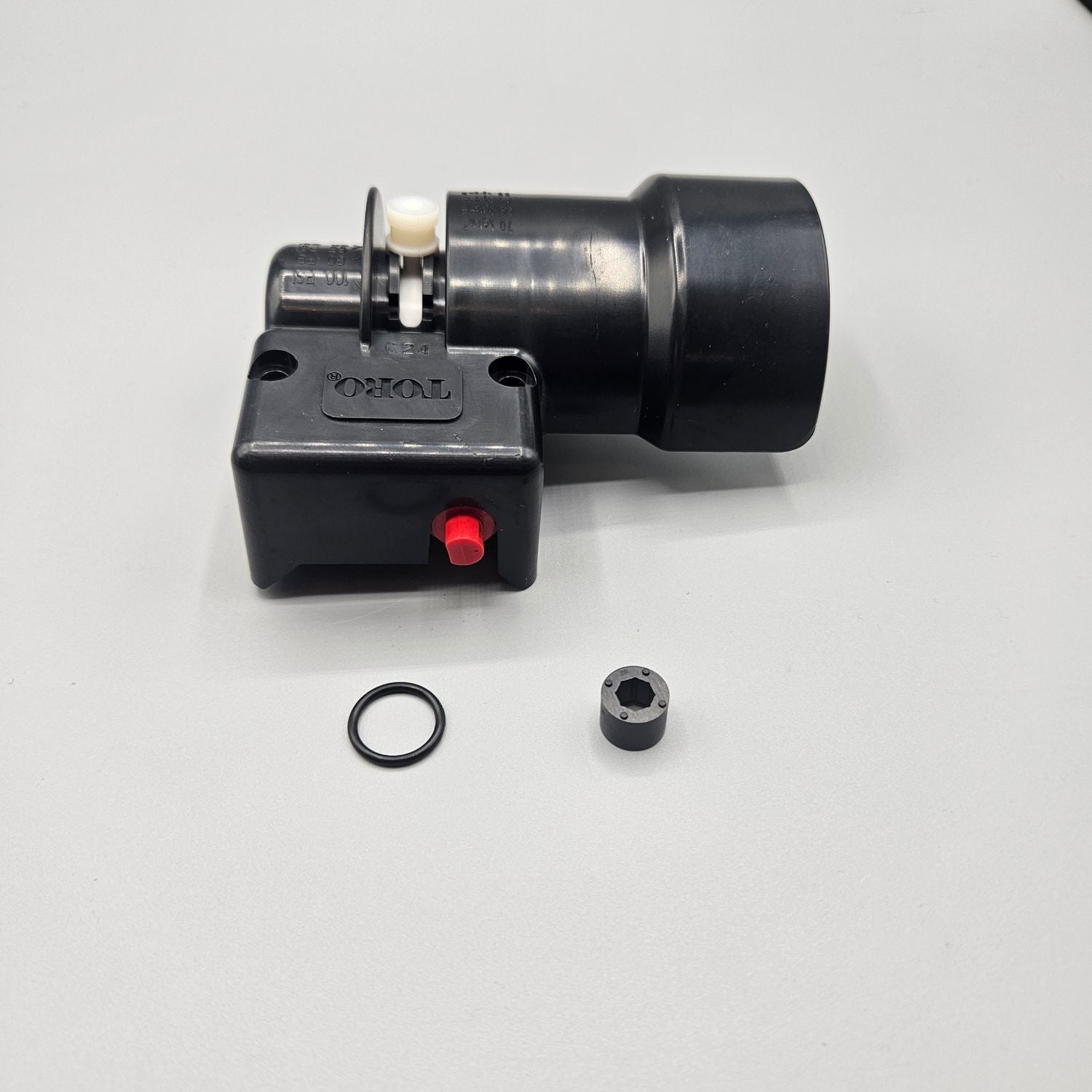

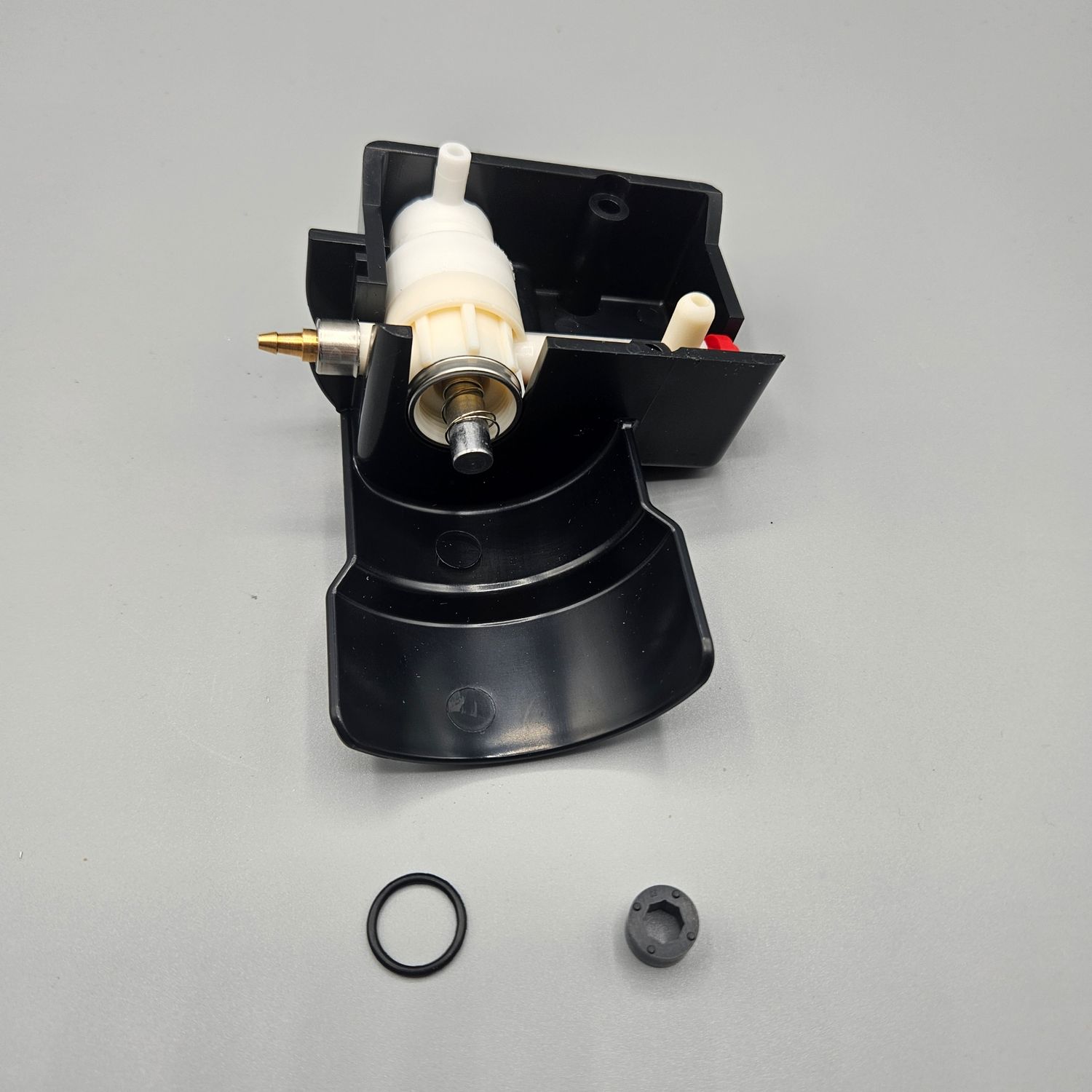

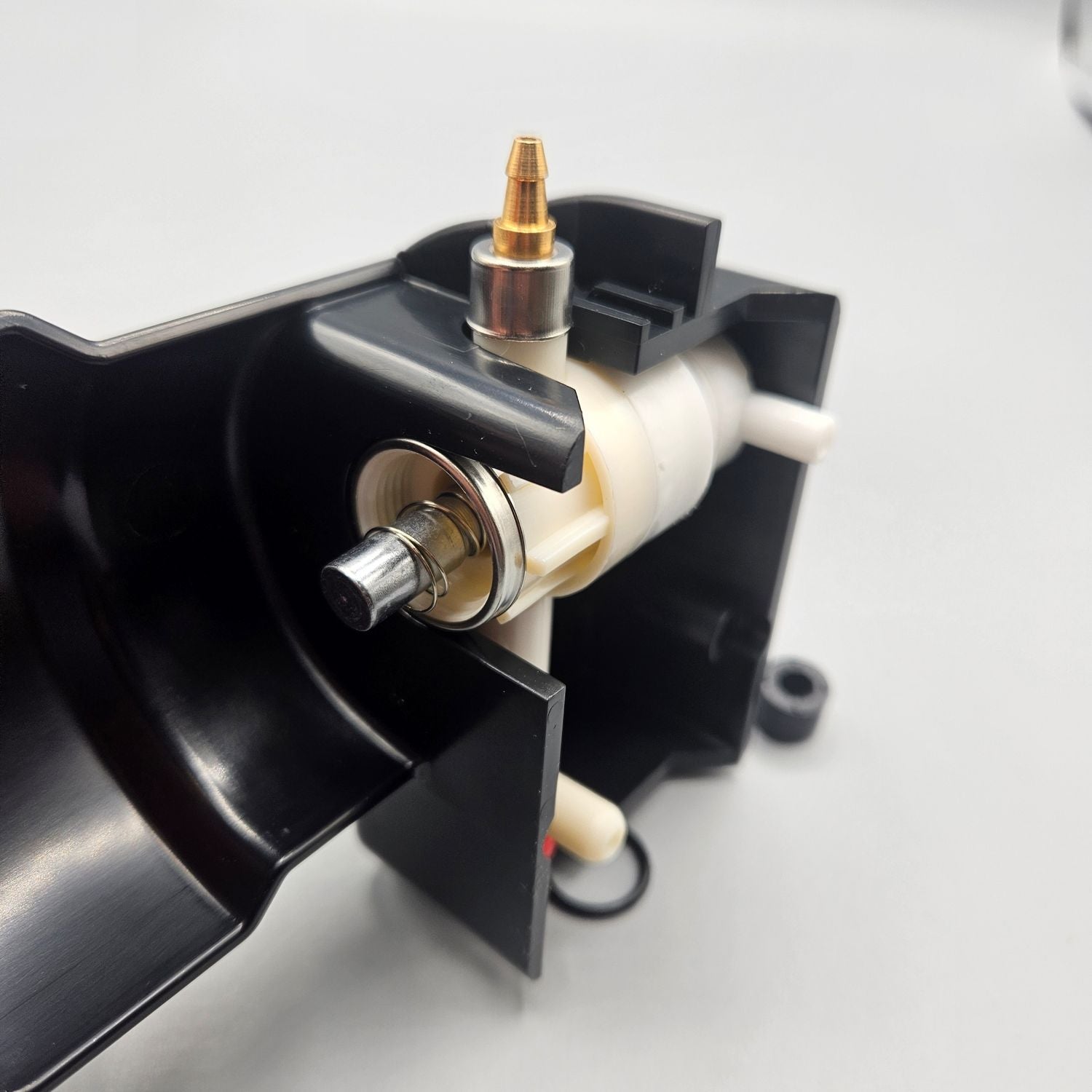

Toro 118-6167SK selectable-pressure pilot valve assembly

This is a replacement sealed pilot-valve assembly for compatible Toro electric valve-in-head golf sprinklers. It provides selectable sprinkler pressure regulation. The 118-6167SK service kit is supplied without a solenoid.

Before ordering

• Match the part number to the sprinkler's pilot-valve parts diagram and generation. Toro lists the underlying 118-6167 solenoid-less assembly in its FLEX selectable-pressure pilot-valve parts groups.
• If replacing a complete electrically operated pilot valve, retain or order the correct compatible solenoid separately. The controller's AC or DC-latching system determines the solenoid type; this kit alone does not provide either electrical control type.
• The Toro selectable pilot-valve arrangement offers 3.4, 4.5, 5.5 or 6.9 bar (50, 65, 80 or 100 psi) settings on supported FLEX rotors. Confirm the sprinkler's specified pressure and available inlet pressure before adjustment.

Compatibility: Check the exact body, pilot-valve version and existing solenoid before purchase. This is a pilot-valve service assembly, not a complete sprinkler or main piston valve.

Toro FLEX selectable-pressure information
