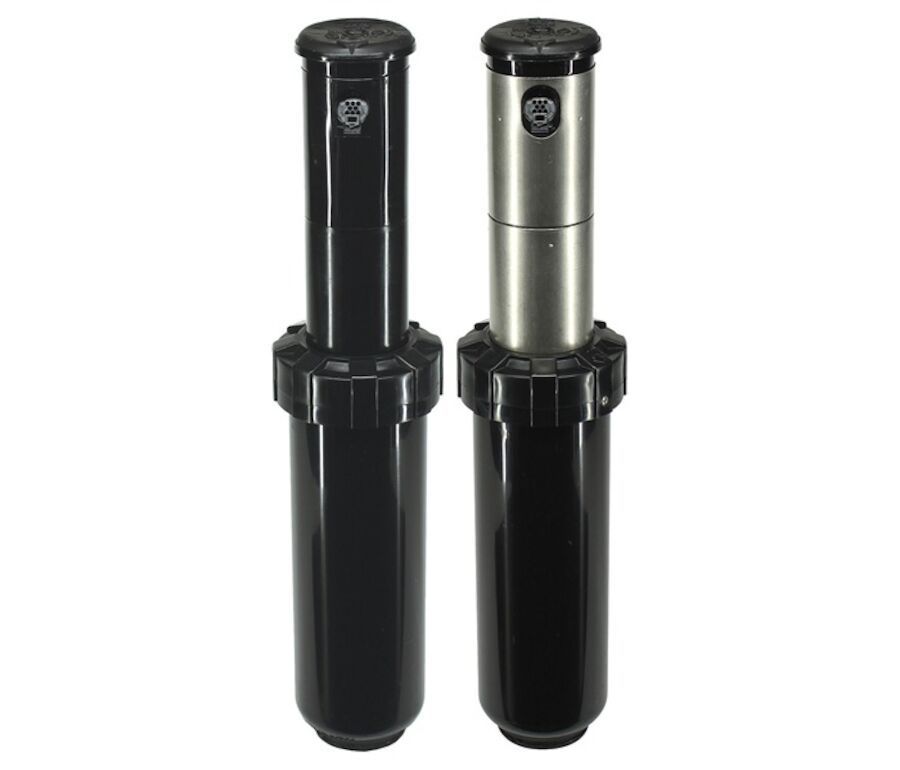

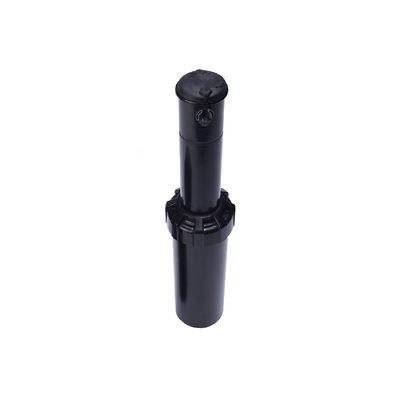

Toro T7 Rotor

Toro T7 commercial rotor

A high-flow rotor for large turf areas including sports grounds, parks and commercial landscapes. The available variants combine a plastic or stainless-steel riser with either a 1 in BSP or 1 in ACME connection.

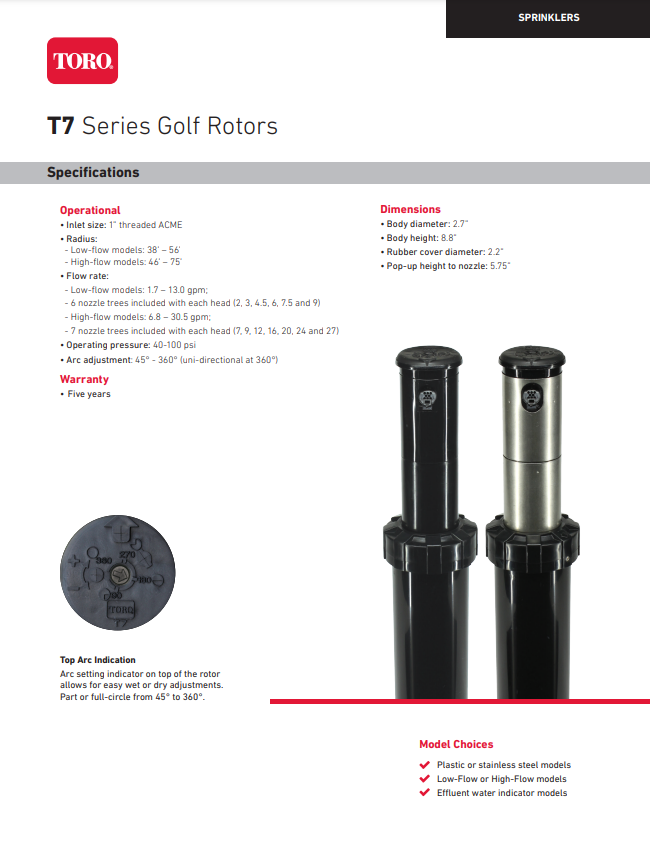

Specifications

• Radius: approximately 14 to 25 m
• Flow: approximately 25.4 to 116 litres per minute
• Operating pressure: 2.8 to 6.9 bar
• Pop-up height: 127 mm
• Arc: part-circle adjustment through to full-circle operation
• Riser options: plastic or stainless steel

Choose the connection carefully

Select the BSP or ACME inlet to match the swing joint; these thread forms are not interchangeable. Confirm available pressure and flow against the chosen nozzle before installation.
