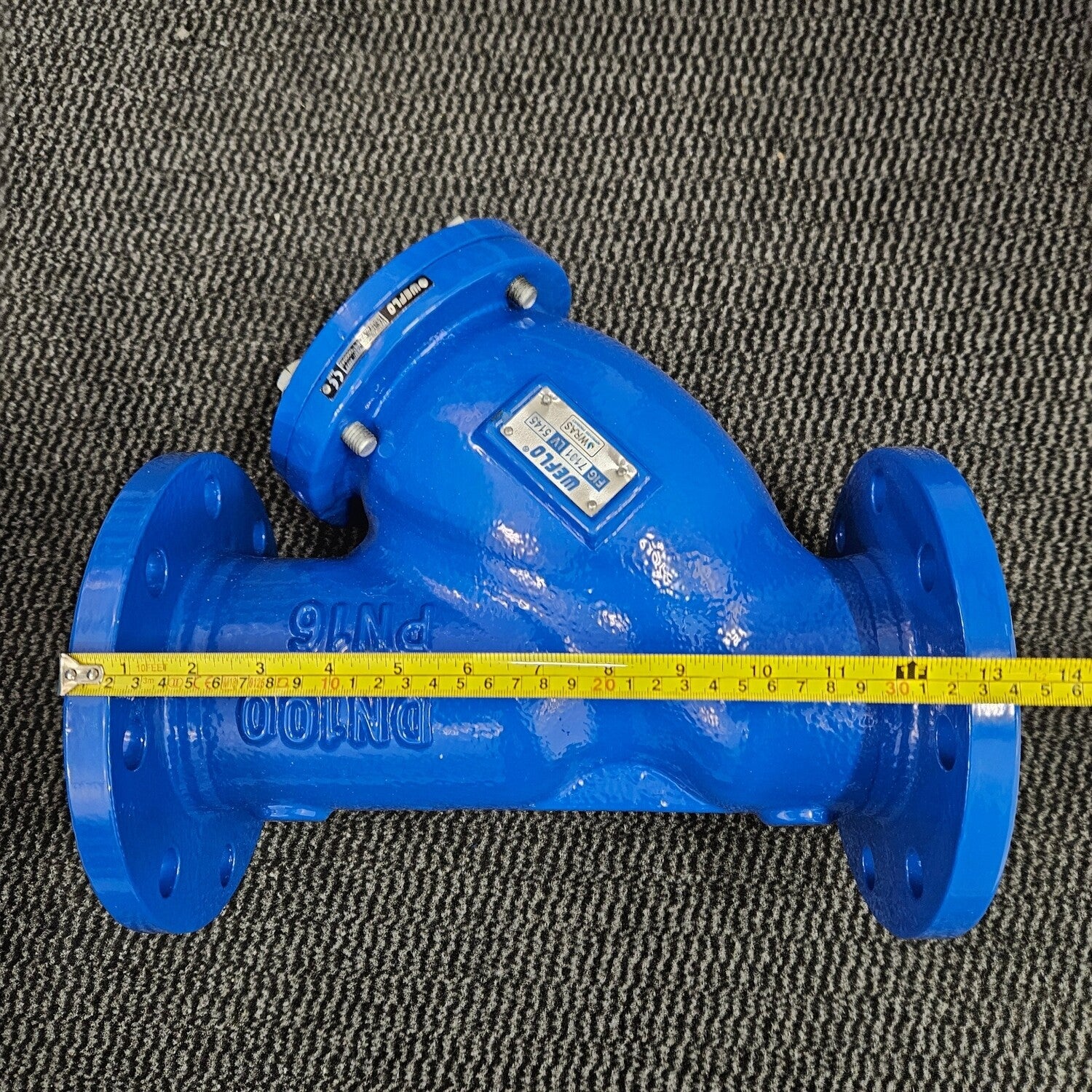

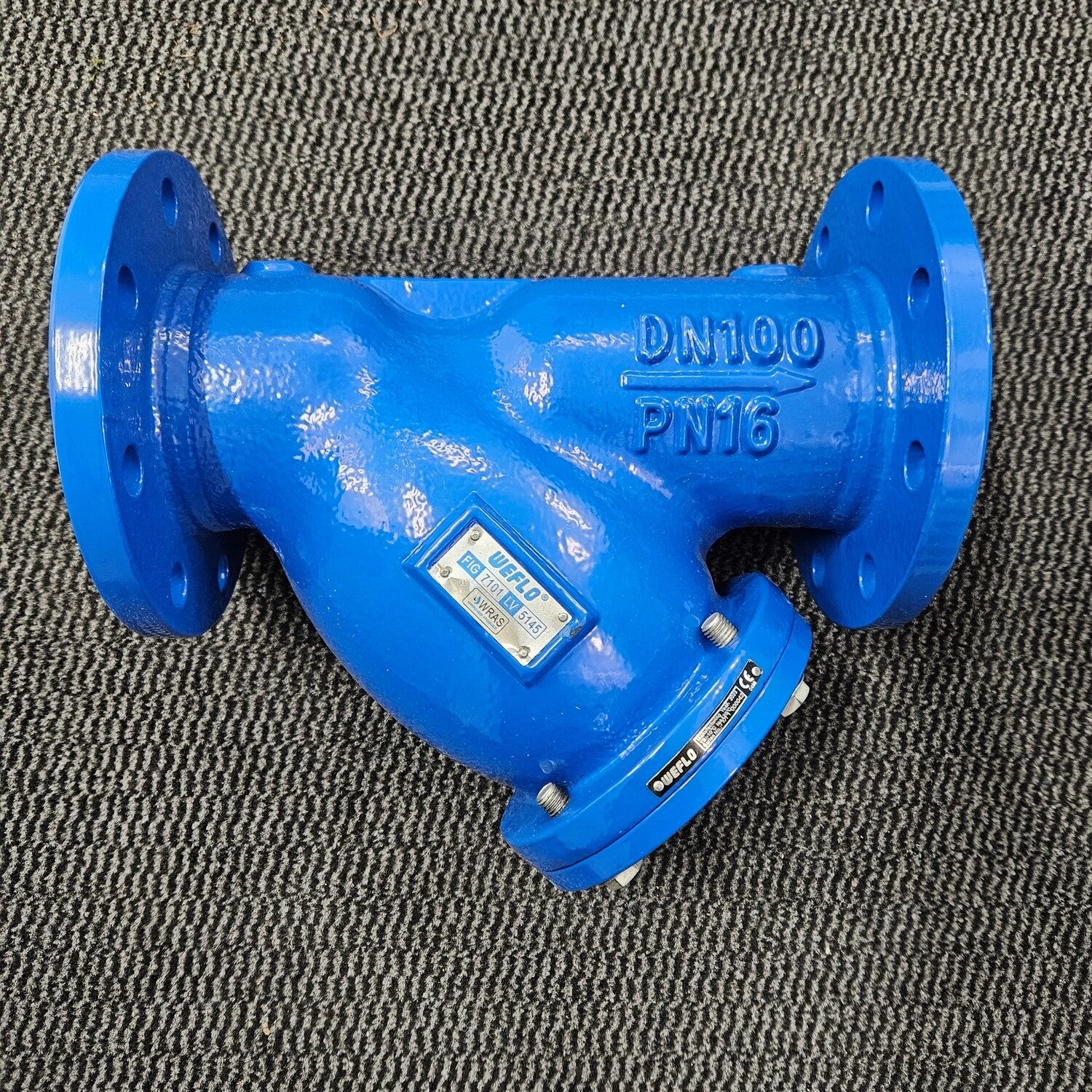

DN100 4-inch PN16 Cast Iron Flanged Y Strainer

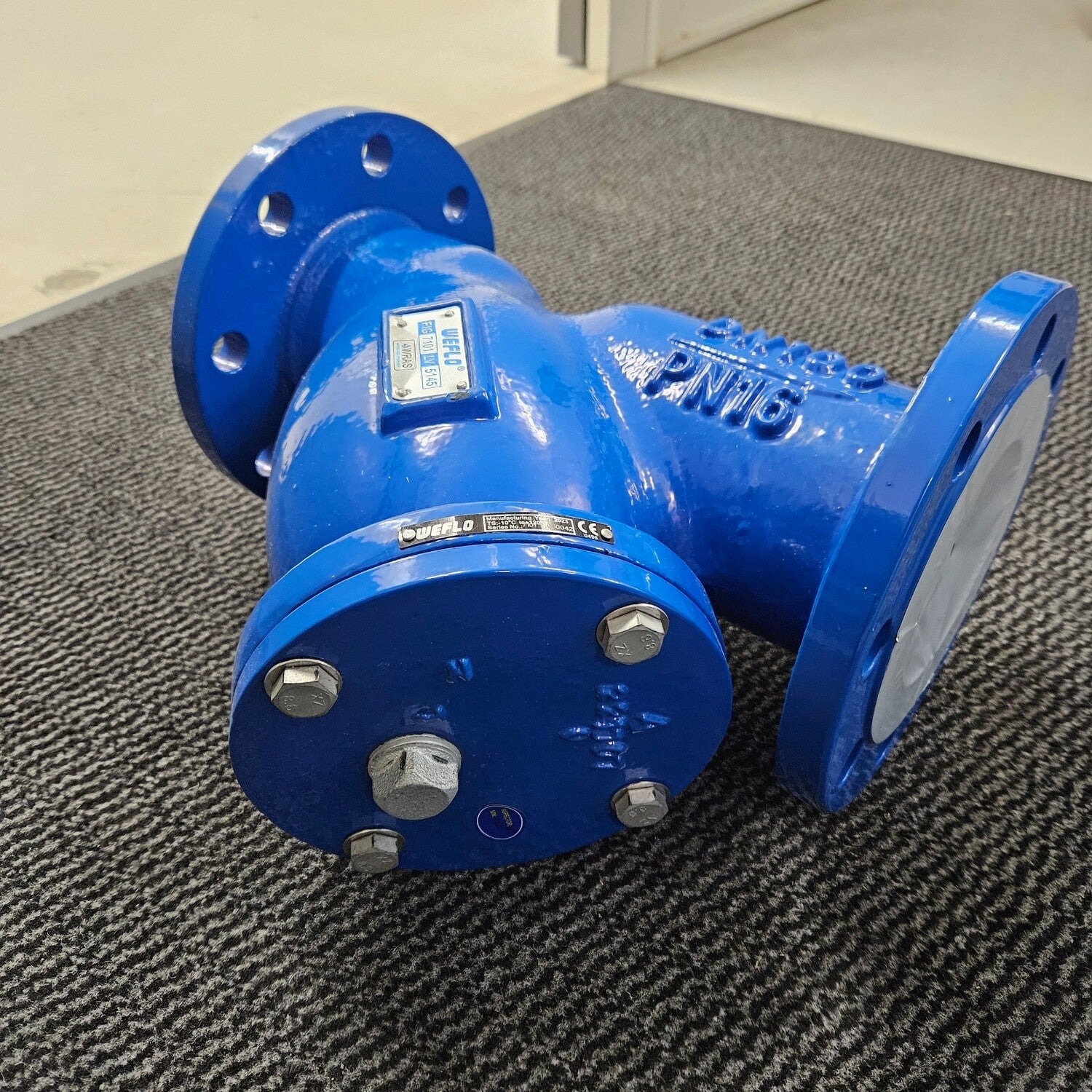

This DN100 (4-inch) Y strainer removes larger debris from compatible flanged water pipework before it reaches pumps, valves, meters and other equipment. The angled screen chamber allows collected material to be accessed for periodic cleaning.

Product details

• Nominal size: DN100 (4-inch)
• Pressure class: PN16
• Epoxy-coated cast-iron body
• 3 mm stainless-steel screen
• Flanged connection

Install in the correct flow direction and with enough clearance to remove and clean the screen. Confirm the flange drilling, face-to-face dimensions, operating pressure, temperature, fluid compatibility and acceptable pressure loss before ordering. Isolate and fully depressurise the system before opening the strainer.
