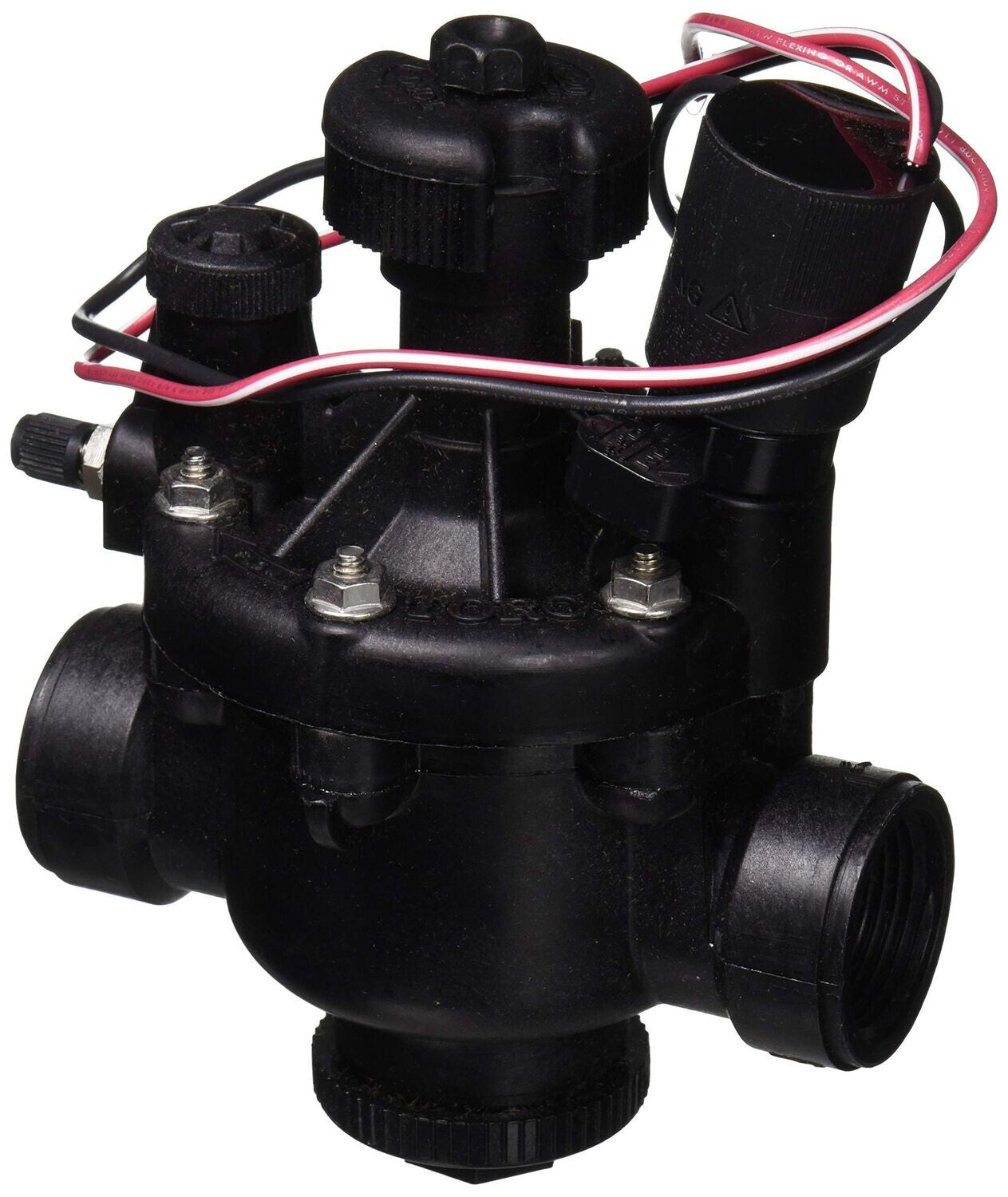

Toro P220 Series DC Coils & Pressure Regulator

Vendor: Toro

SKU: P220G-24-04DL

£151.72 ~~£216.75~~

Shipping calculated at checkout.

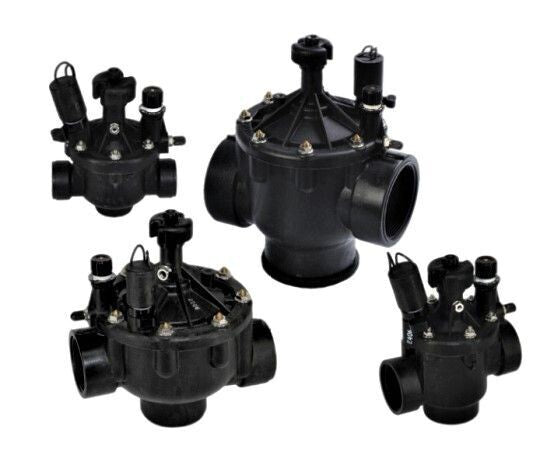

Toro P220G DC-latching regulated valves

This range combines a Toro P220G high-pressure irrigation valve, a listed 9 V DCLS-P latching solenoid and an EZR-100 pressure regulator. Choose the 1 in, 1½ in or 2 in female BSP variant to match the pipework.

Key specifications

Connections: female BSP, according to the selected variant
Control: DCLS-P DC-latching solenoid
Pressure regulation: EZR-100, adjustable from 0.3 to 6.9 bar
Maximum inlet pressure: 15.2 bar
Construction: glass-filled nylon body with stainless-steel components

Selection and installation

Match the valve size and latching-solenoid requirements to the controller before ordering. These are DC-latching variants, not 24 VAC valves. Install and commission in accordance with Toro's instructions.

Type and Coil: Toro P220G 1" BSP female 9V DCLS-P latching Golf solenoid valve with EZR-100

Toro P220G 1" BSP female 9V DCLS-P latching Golf solenoid valve with EZR-100 Toro P220G 1½" BSP female 9V DCLS-P latching Golf solenoid valve with EZR-100 Toro P220G 2" BSP female 9V DCLS-P latching Golf solenoid valve with EZR-100
