Rain Bird DBM10 Waterproof Cable Connector

Rain Bird DBM10 quick-connect wire connectors

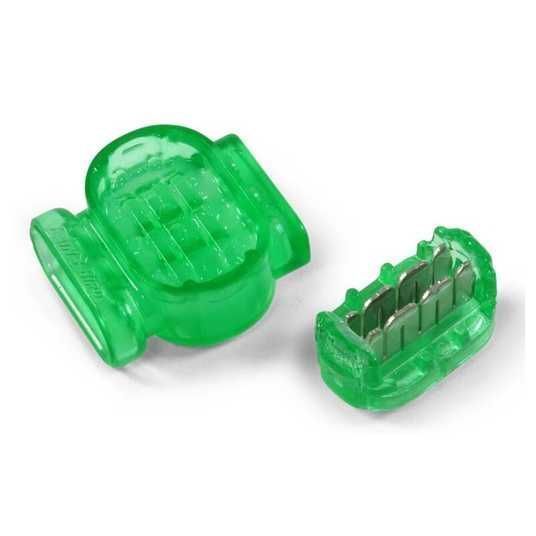

The DBM10 is a compact, self-stripping connector for insulated copper irrigation-control wires. Rain Bird rates it IP67 and approves it for 30 V wet or damp locations. A one-piece metal blade makes contact through the insulation, while the pre-filled silicone sealant protects the joint.

Connection capacity and specifications

• Up to three insulated copper wires sized 1.5 mm² or 0.8 mm²
• Manufacturer maximum wire-voltage rating: 600 V; intended application: 30 V wet or damp locations
• Silicone sealant temperature range: -45°C to 200°C

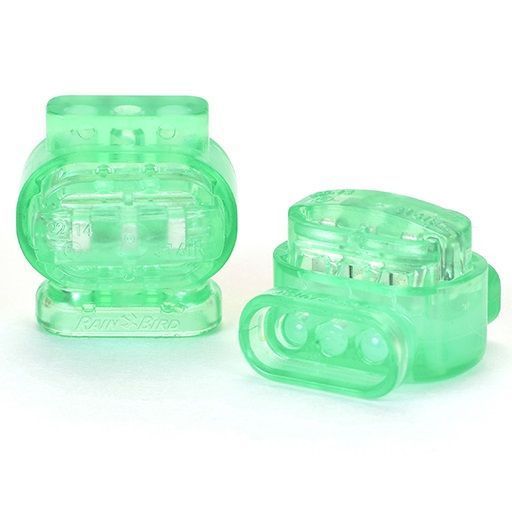

• UV- and impact-resistant body with a translucent green depression cap
• Supplied as one bag of 10 connectors

How to use

1. Isolate the circuit before making or removing a connection.
2. Do not strip the conductors. Insert the insulated copper wires fully into the connector.
3. Press the green cap fully down, then gently pull each wire to confirm it is secure.

Selection guidance: Choose DBM10 for compact low-voltage joints using small insulated copper conductors. For a direct-bury tube-and-wire-nut connection covering a wider conductor range, see the Rain Bird WC20 (formerly DBRY20). For stripped copper conductors in circuits below 30 V, see the Rain Bird KING connector.
